Male Jic-Female Metric Swivel

Description & Features

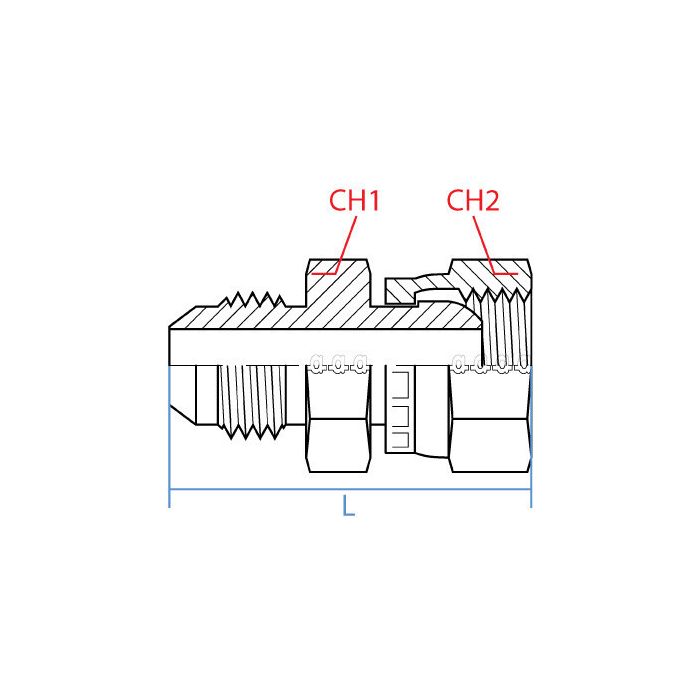

This straight steel fitting from Adaptall America is a Male Jic-Female Metric Swivel. The Adaptall Ch1 width is 14mm and the Adaptall Ch2 width is 17mm.

The Adaptall Side 1 is a male JIC type with a 7/16 - 20 UNF callout and 1/4" size. The Adaptall Side 2 is a female DIN tube type with a M12 X 1.5 callout and L06 size. The Adaptall L Length is 37mm.

SKU: 9022-04-L06-12

Supplier Part Number (MPN): 9022-04-L06-12

Specifications

Connection Size 1 1/4 in	Connection Size 2 6 mm	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Metric Swivel	Dimension Standards DIN 2353, SAE J514	Dimensions 37.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9022 Series	Thread Size 7/16-20 x M12x1.5

Product Questions & Answers (2)

Question by: Larry B on May 18, 2025, 8:37 PM

trying to hook a 1/4 JIC hose up to a metric DIN tube port, is this the right adapter?

Answer by: Customer Support on May 20, 2025, 6:30 AM

For that mix of ends, it matches up as a straight steel adapter with a male JIC on Side 1 (7/16-20 UNF, 1/4 inch size) and a female DIN tube swivel on Side 2 (M12 x 1.5, L06 size).

Question by: Dwayne M on Sep 3, 2025, 6:35 AM

what's the thread size on the JIC side of this fitting? need to know if it'll mate up with a 7/16 line I got on a loader attachment

Answer by: Customer Support on Sep 4, 2025, 8:40 PM

The male JIC end runs a 7/16-20 UNF thread, so if your line is spec'd for that callout you're in good shape. That's a standard 1/4" JIC size, which shows up pretty commonly on smaller hydraulic lines and fittings in agricultural and loader equipment.
