Male Jic-Female Metric Swivel

Description & Features

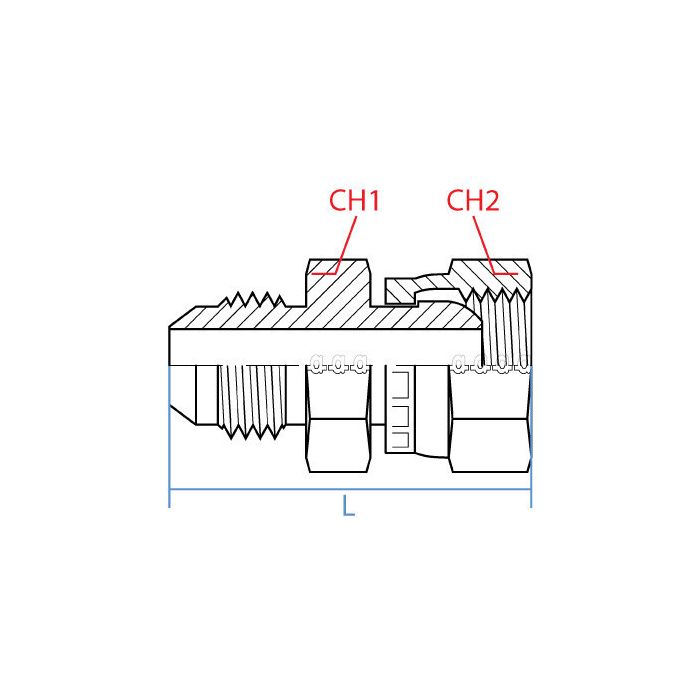

This straight steel fitting is a male JIC to female metric swivel, designed to connect SAE J514 JIC and DIN tube ends. The JIC side features a 7/16-20 UNF thread with a 1/4" size, while the DIN tube side has a M14 X 1.5 thread with an L08 size. The Adaptall Ch1 width measures 16mm, and the Adaptall Ch2 width is 19mm.

This Male Jic-Female Metric Swivel has an Adaptall L Length of 39mm.

SKU: 9022-04-L08-14

Supplier Part Number (MPN): 9022-04-L08-14

Specifications

Connection Size 1 1/4 in	Connection Size 2 8 mm	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Metric Swivel	Dimension Standards DIN 2353, SAE J514	Dimensions 38 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9022 Series	Thread Size M14x1.5 x 7/16-20

Product Questions & Answers (2)

Question by: Dwayne W on Aug 25, 2025, 8:51 PM

got a hose end with 7/16-20 JIC male on it, will this swivel right onto that?

Answer by: Customer Support on Aug 27, 2025, 4:16 PM

On the JIC side, it matches a 7/16-20 UNF male JIC in 1/4 inch size, so the female JIC swivel end is set up to thread onto that.

Question by: Dale S on May 20, 2025, 7:33 PM

got a line running metric DIN tube on one end and JIC fittings on the other, does this adapter cross those two over or am I looking at the wrong part?

Answer by: Customer Support on May 22, 2025, 6:59 AM

That's what this one does. One side is a male JIC with a 7/16-20 UNF thread, which is your standard 1/4 inch JIC connection. The other side is a female metric swivel with an M14 x 1.5 thread in the L08 DIN tube size. So if you've got a JIC line meeting a metric DIN tube end, this fitting bridges that gap straight through with no angle to it.
