Male Jic-Female Metric Swivel

Ask A Question

Description & Features

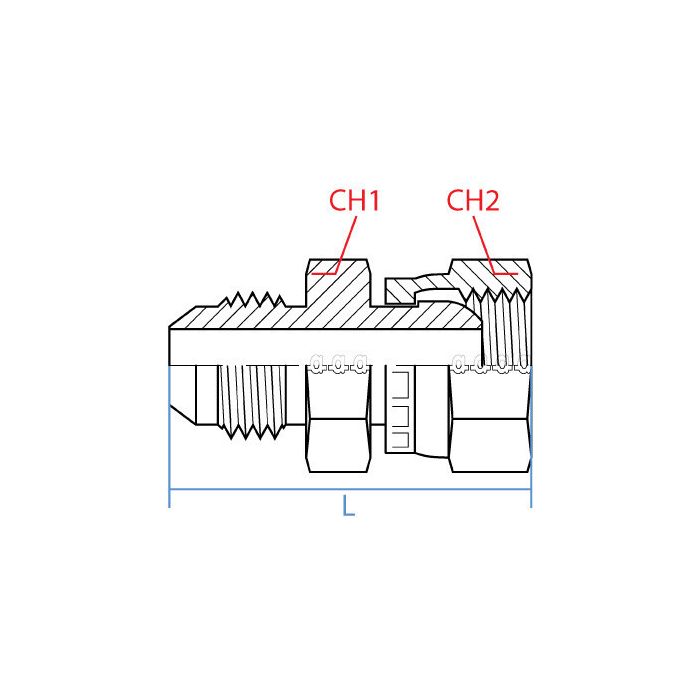

This straight steel fitting is a male JIC to female DIN tube swivel. It adapts a 5/16" JIC connection with a 1/2 - 20 UNF callout to a M12 X 1.5 female DIN tube connection.

This Male Jic-Female Metric Swivel features wrench flats of 14mm and 17mm and an overall length of 38mm.

SKU: 9022-05-L06-12

Supplier Part Number (MPN): 9022-05-L06-12

Specifications

Connection Size 1
5/16 in
Connection Size 2
6 mm
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Metric Swivel
Dimension Standards
DIN 2353, SAE J514
Dimensions
37.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9022 Series
Thread Size
1/2-20 x M12x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy F on Jan 4, 2026, 12:13 PM
trying to hook a 5/16 jic hose to a metric din tube port, is this the right adapter?
Answer by: Customer Support on Jan 6, 2026, 12:07 PM
For that mix of ends, it matches up as a straight steel adapter with a 5/16 inch male JIC end called out as 1/2-20 UNF, and a female DIN tube swivel end called out as M12 x 1.5.
