Male Jic-Female Metric Swivel

Description & Features

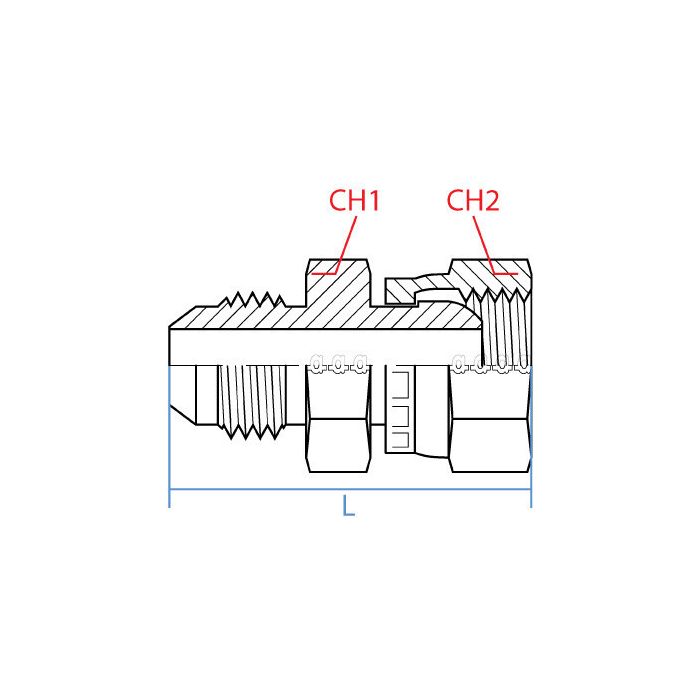

This Adaptall straight fitting is a Male Jic-Female Metric Swivel, constructed of steel for durability. It adapts a 9/16 - 18 UNF JIC male end to a M16 X 1.5 DIN tube female swivel end.

The JIC side has a 3/8" size and the Metric side has a L10 size. The wrench flat on the JIC side measures 19mm, while the Metric side measures 22mm. Its Adaptall L length is 41mm.

SKU: 9022-06-L10-16

Supplier Part Number (MPN): 9022-06-L10-16

Alternate Part Numbers: C1FQ80

Specifications

Connection Size 1 3/8 in	Connection Size 2 10 mm	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Metric Swivel	Dimension Standards DIN 2353, SAE J514	Dimensions 40 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 x 22 mm	Material Steel	Material Construction Carbon Steel	Series 9022 Series	Thread Size 9/16-18 x M16x1.5

Product Questions & Answers (2)

Question by: Gene H on Jun 10, 2025, 9:20 PM

What size wrench do I need for this fitting? Looks like more than one size is involved.

Answer by: Customer Support on Jun 12, 2025, 6:12 AM

You'll need a 19mm wrench for one side and a 22mm wrench for the other.

Question by: Tommy F on Nov 14, 2025, 8:25 AM

Got a metric port on my equipment and need to hook up a JIC line to it, this the kind of fitting that bridges that gap?

Answer by: Customer Support on Nov 16, 2025, 6:08 AM

Exactly what it's built for. One end is a 9/16-18 UNF male JIC thread, the other is a female M16 x 1.5 metric swivel. The swivel side connects to a DIN tube fitting, so you can mate a standard JIC hydraulic line to a metric port without any adapter stacking. Both ends are steel, overall length runs 41mm, and the straight body keeps the hydraulic connections clean when space isn't an issue.
