Male Jic-Female Metric Swivel

Description & Features

Manufactured from steel in a straight configuration, this Male Jic-Female Metric Swivel bridges a 3/8" JIC male connection (9/16-18 UNF thread) on one end to an M20 x 1.5 DIN tube female swivel on the other. The swivel end accommodates S12 metric tube sizing, making it a practical solution for adapting between JIC and metric DIN tube circuits in hydraulic systems where mixed connection standards are present.

At 42mm in overall length, the fitting is compact enough for space-limited installations. Wrench flats measure 21mm on the JIC side and 27mm on the metric side, allowing secure torquing with standard tooling. Produced by Adaptall, the fitting follows their interchangeable adapter system design, providing reliable compatibility across a wide range of port and hose end configurations.

SKU: 9022-06-S12-20

Supplier Part Number (MPN): 9022-06-S12-20

Alternate Part Numbers: C1FV79

Specifications

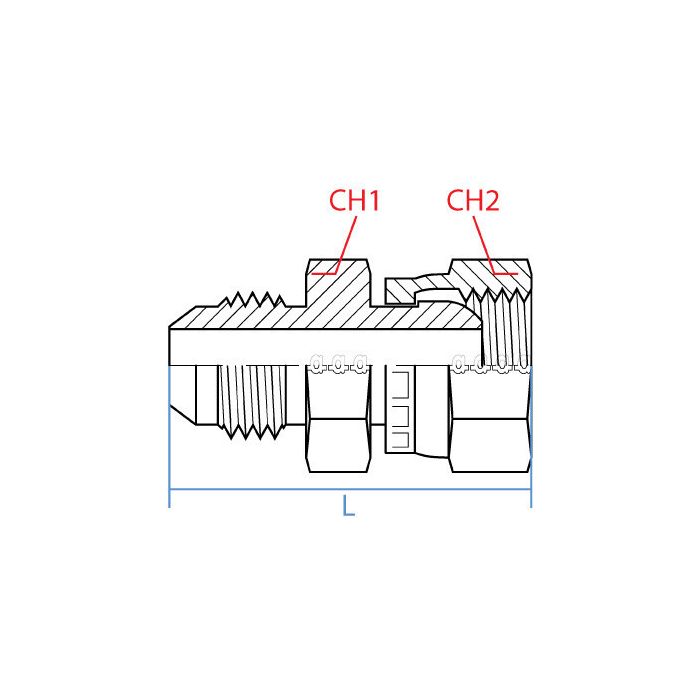

CH1 Width 21mm	CH2 Width 27mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number C1FV79	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-06-S12-20	Product Weight 0.15 lbs

Product Questions & Answers (2)

Question by: Phil E on Sep 13, 2025, 10:14 AM

Will this fitting work to hook up a 3/8" JIC male to a M20 x 1.5 female swivel?

Answer by: Customer Support on Sep 14, 2025, 12:31 PM

Yes, this Adaptall fitting is manufactured to bridge that exact connection type. It adapts a 3/8" JIC male end to an M20 x 1.5 DIN tube female swivel.

Question by: Shawn C on Mar 4, 2026, 7:45 PM

got a hose end that’s 9/16-18 JIC male on one side, and the other side needs to hook to an M20 x 1.5 metric tube swivel. is this the right adapter?

Answer by: Customer Support on Mar 6, 2026, 4:30 PM

For bridging those two standards, it matches what you described. One end is a 3/8 inch JIC male with 9/16-18 UNF threads, and the other end is a female metric swivel for M20 x 1.5 DIN tube connections sized for S12 tube.
