Male Jic-Female Metric Swivel

Description & Features

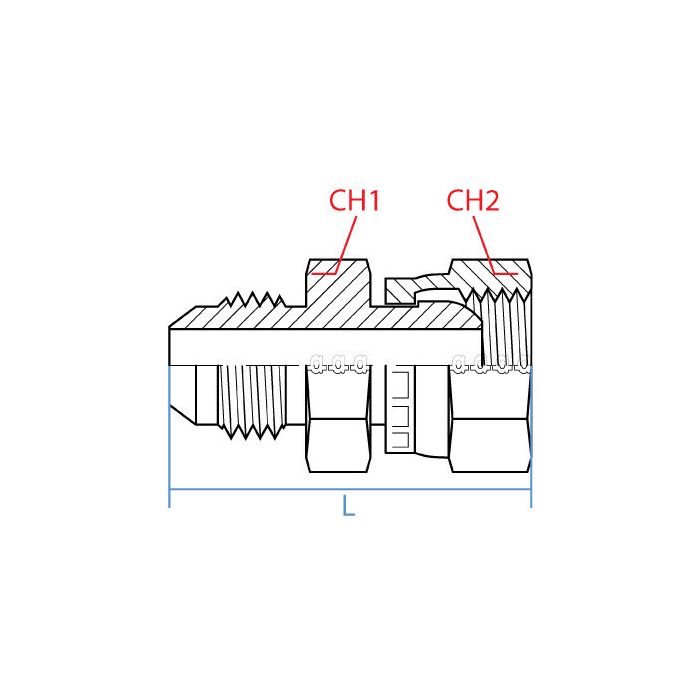

This Adaptall straight fitting is a male JIC to female metric swivel. It features a 3/4 - 16 UNF male JIC end with a 1/2" size and a M16 X 1.5 female DIN tube end with a L10 size. The steel fitting has a Side 1 wrench flat of 20mm and a Side 2 wrench flat of 22mm. The overall length (L) of the Male Jic-Female Metric Swivel is 43mm.

SKU: 9022-08-L10-16

Supplier Part Number (MPN): 9022-08-L10-16

Alternate Part Numbers: C1FQ82, ME09022-1016, MI-03009370, MINO-03671X50024

Specifications

CH1 Width 20mm	CH2 Width 22mm	L Length 43mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size L10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number C1FQ82, Alternate Part Number ME09022-1016, Alternate Part Number MI-03009370, Alternate Part Number MINO-03671X50024	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9022-08-L10-16	Product Weight 0.15 lbs

Product Questions & Answers (2)

Question by: Keith P on Dec 5, 2025, 1:18 PM

Will this fitting work to connect a JIC fitting to a metric tube?

Answer by: Customer Support on Dec 6, 2025, 4:51 PM

This Adaptall fitting is designed to adapt a male JIC fitting to a female metric DIN tube connection. It has a 1/2" JIC male end and a M16 X 1.5 female DIN tube end.

Question by: Dean H on Mar 8, 2026, 4:39 PM

got a 1/2 inch JIC male fitting on a hydraulic line and need to tie into a metric port, this the right adapter for that?

Answer by: Customer Support on Mar 10, 2026, 6:36 AM

For connecting a 1/2" JIC male end to a metric female port, yes, that's exactly what this adapter handles. One side is a 3/4-16 UNF male JIC thread, and the other is an M16 x 1.5 female metric swivel. The female side uses a DIN tube fitting configuration, so as long as your metric port matches that M16 x 1.5 thread pitch, you're in good shape. It's straight, so no angle change in the line routing.
