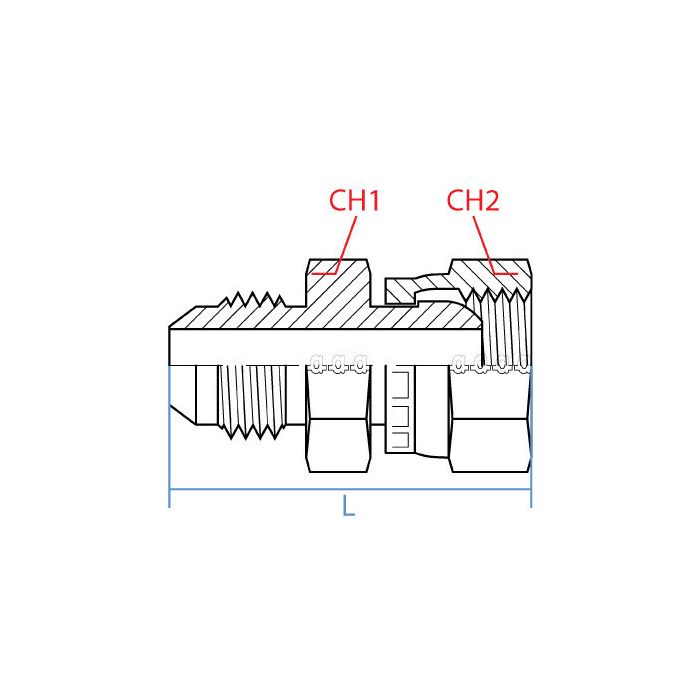

main product photo

Male Jic-Female Metric Swivel

Ask A Question

Description & Features

Designed for precision and reliability, this male JIC to female metric swivel adapter is an essential component for seamless hydraulic connections. Constructed from durable steel, it ensures longevity and robust performance in demanding industrial environments. The straight shape of the adapter allows for easy installation and compact integration into existing systems.

This adapter features a 7/8 - 14 UNF male JIC connection on one side and an M18 x 1.5 female DIN tube fitting on the other, making it versatile for various hydraulic applications. With a length of 47mm and widths of 25mm and 27mm at connection points, it provides a secure fit that minimizes leakage and enhances system efficiency.

SKU: 9022-10-L12-18

Supplier Part Number (MPN): 9022-10-L12-18

Specifications

Connection Size 1
5/8 in
Connection Size 2
12 mm
Connection Type
Female Metric Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Metric Swivel
Dimension Standards
DIN 2353, SAE J514
Dimensions
45 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
9022 Series
Thread Size
7/8-14, M18x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Chad R on Jan 21, 2026, 6:05 PM
So this here is steel, right? Just making sure it won't rust out on me.
Answer by: Customer Support on Jan 23, 2026, 11:39 AM
Yes sir, the adapter is made from durable steel. This ensures it can withstand demanding industrial environments, offering longevity and robust performance.
Question by: Merle W on Jul 10, 2025, 8:48 AM
got a hose end that’s 7/8-14 UNF JIC male, will this adapter mate up to it and still give me an M18 x 1.5 metric female on the other side?
Answer by: Customer Support on Jul 12, 2025, 6:28 AM
Match the ends by thread callout and gender. One side is a 7/8 - 14 UNF male JIC, and the other side is an M18 x 1.5 female DIN tube fitting, so it is meant to bridge those two connection types.
