Male Jic-Female Metric Swivel

Description & Features

This steel, straight-shaped fitting is a Male Jic-Female Metric Swivel.

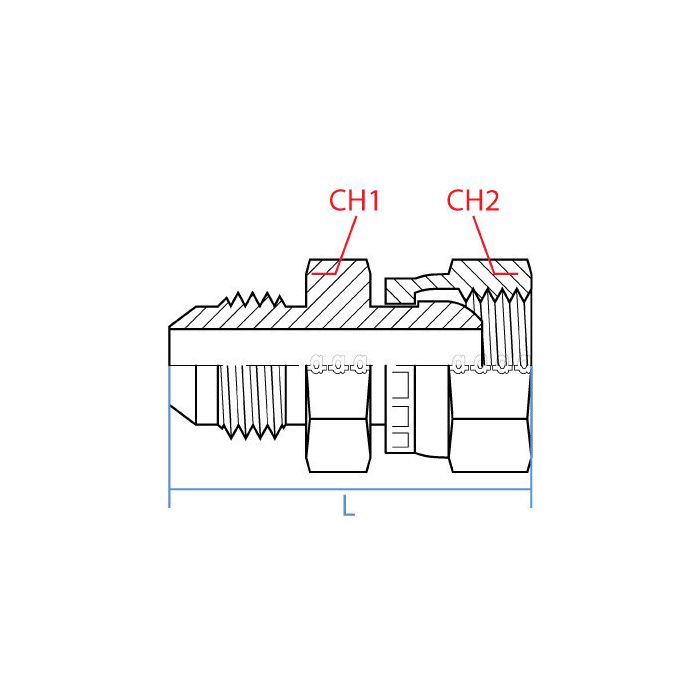

On side 1, this Adaptall fitting features a 7/8 - 14 UNF male JIC connection with a 5/8" size. Side 2 features a M20 X 1.5 female DIN tube connection with a S12 size. Adaptall Ch1 and Ch2 Width both measure 27mm, and Adaptall L Length measures 49mm.

SKU: 9022-10-S12-20

Supplier Part Number (MPN): 9022-10-S12-20

Specifications

Connection Size 1 5/8 in	Connection Size 2 12 mm	Connection Type Female Metric Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Metric Swivel	Dimension Standards DIN 2353, SAE J514	Dimensions 47 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9022 Series	Thread Size 7/8-14 x M20x1.5

Product Questions & Answers (2)

Question by: Lee C on Jul 2, 2025, 3:06 PM

So, this fitting... it's steel, right? Just makin' sure.

Answer by: Customer Support on Jul 3, 2025, 8:00 PM

Yes, this Adaptall fitting is made of steel for durability.

Question by: Sherry B on Feb 1, 2026, 11:38 AM

trying to hook a 7/8-14 UNF JIC male into a metric DIN tube line, is that what this fitting is for?

Answer by: Customer Support on Feb 2, 2026, 11:49 AM

For adapting between those two connection styles, it matches a 7/8 - 14 UNF male JIC on one end (5/8 inch size) and a female DIN tube connection on the other end with M20 x 1.5 threads (S12 size).
