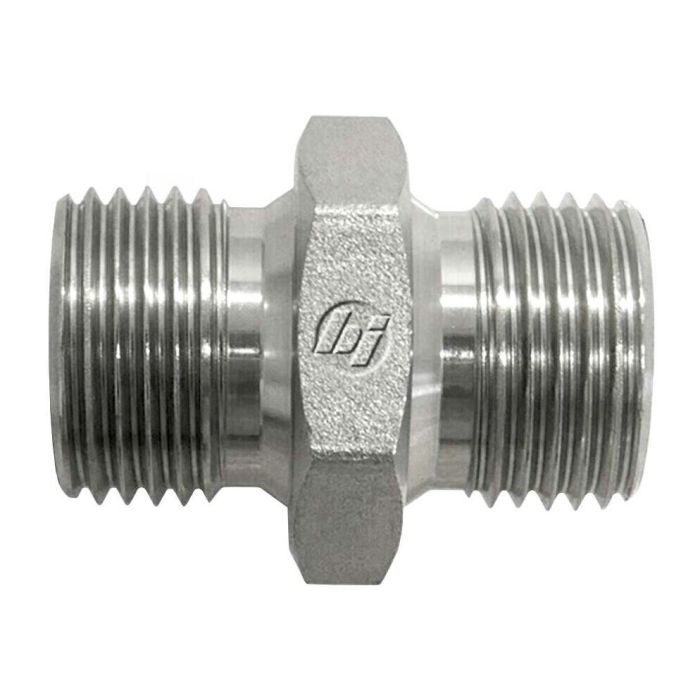

STR MALE BSP 3/4 IN - MALE BSP 3/8 IN

Ask A Question

Description & Features

This straight steel fitting, a STR MALE BSP 3/4 IN - MALE BSP 3/8 IN, is part of the 9022 series from Brennan Industries. It features a 60-degree seat swivel connection on both ends.

The fitting adapts from a 3/4-14 thread size to a 3/8-19 thread size. The thread drill sizes are 18.1 mm and 9.5 mm respectively.

SKU: 9022-12-06

Supplier Part Number (MPN): 9022-12-06

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/8 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Cone Seat
Connection Type 2
Male BSPP 60 deg Cone Seat
Cubic Inch Space L x W x H Dimensions
2.506 cu-in
Dimensions
40 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
32 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Series
9022 Series
Thread B1 Drill Dimensions
18.1 mm
Thread B2 Drill Dimensions
9.5 mm
Thread Size
3/4-14 x 3/8-19

Product Questions & Answers (1)

Question by: Jean S on Sep 20, 2025, 3:12 PM
Reckon this'll fit right where a 3/4 to 3/8 inch reduction is needed, with them BSPP threads?
Answer by: Customer Support on Sep 22, 2025, 7:08 AM
This fitting adapts from a 3/4-14 thread size to a 3/8-19 thread size, both being male BSPP with a 60-degree seat swivel connection, so it should do the trick for that reduction.
