Mjic X Fem.Flat China Metric

Ask A Question

Description & Features

This straight Adaptall America steel fitting features a 3/8" male JIC to a 16mm female Metric Flat Face connection. The JIC side has a 9/16 - 18 UNF callout. The Metric Flat Face side features an M16 x 1.5 callout.

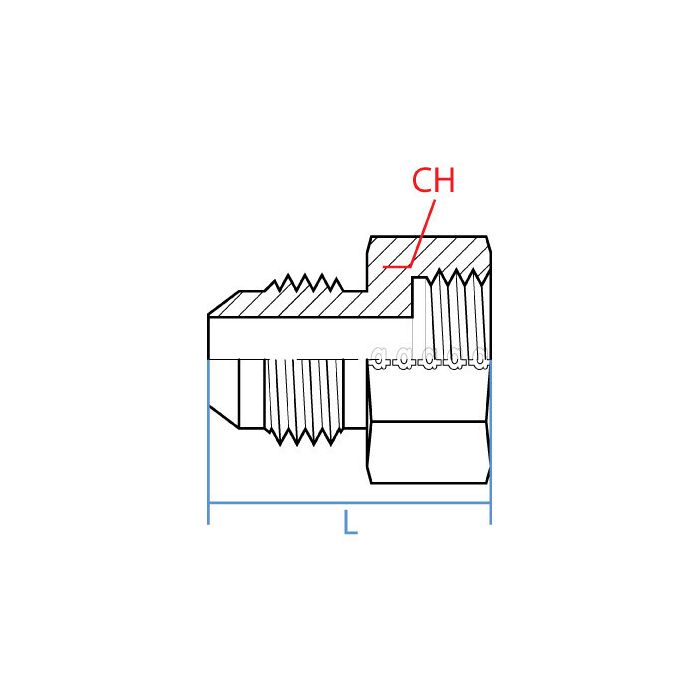

The Adaptall Ch Width is 20.5mm, and the Adaptall L Length is 23.5mm. This fitting is a Mjic X Fem.Flat China Metric.

SKU: 9022FC-06-16

Supplier Part Number (MPN): 9022FC-06-16

Specifications

Connection Size 1
3/8 in
Connection Size 2
S16
Connection Type
Female Metric, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Flat Face Metric
Dimension Standards
GB/T 9065.3, ISO 8434-2, SAE J514
Dimensions
24 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9022FC Series
Thread Size
9/16-18 x M16x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Brent C on Aug 10, 2025, 10:30 AM
got a metric port on a chinese-made hydraulic block, M16 x 1.5 threads, and need to tie into a JIC line on the other end. this the right piece for that?
Answer by: Customer Support on Aug 11, 2025, 4:07 PM
That's what this adapter is built for. One end is a male JIC fitting with 9/16-18 UNF threads, which covers a 3/8 inch JIC line. The other end is a female metric flat face port at M16 x 1.5. Steel construction, straight configuration. If your block has that M16 x 1.5 female port and you're running a JIC hydraulic line, this adapter makes that connection directly.
