Mjic X Fem.Flat China Metric

Description & Features

This straight Adaptall America fitting is a Mjic X Fem.Flat China Metric configuration.

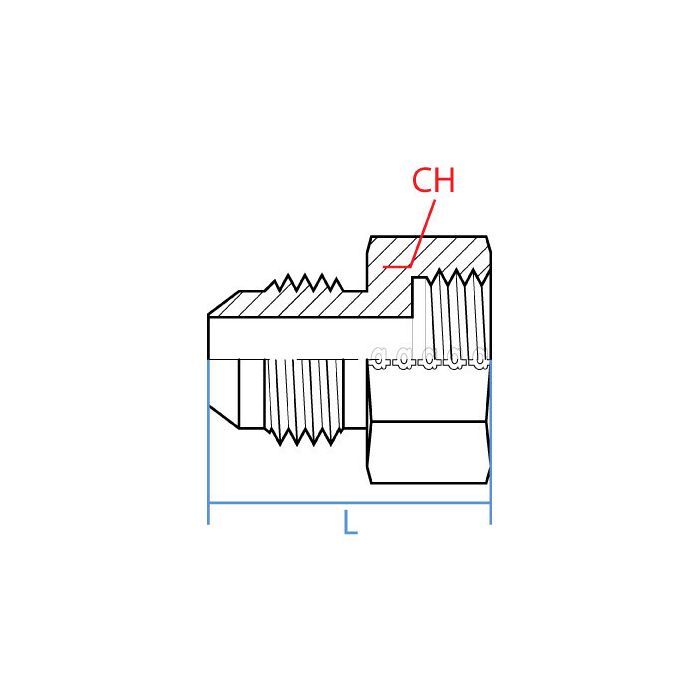

It features a 3/8" male JIC side 1 with a 9/16 - 18 UNF callout, and an 18mm female Metric Flat Face side 2 with a M18 X 1.5 callout. Constructed of steel, it has a side 1 length of 24.4mm and a side 1 wrench flat dimension of 24mm.

SKU: 9022FC-06-18

Supplier Part Number (MPN): 9022FC-06-18

Specifications

Connection Size 1 3/8 in	Connection Size 2 18 mm	Connection Type Female Metric, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female Flat Face Metric	Dimension Standards GB/T 9065.3, ISO 8434-2, SAE J514	Dimensions 24 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9022FC Series	Thread Size 9/16-18 x M18x1.5

Product Questions & Answers (1)

Question by: Lee J on Dec 12, 2025, 4:01 PM

got a metric flat face port on a manifold that's M18 x 1.5 and need to tie into a JIC line on the other end, this the right fitting for that?

Answer by: Customer Support on Dec 13, 2025, 8:03 PM

That's what this one's built for. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other end is a Female Metric Flat Face at M18 x 1.5. Straight configuration, steel construction, so it'll hold up in a standard hydraulic hydraulic connections setup without any fuss.
