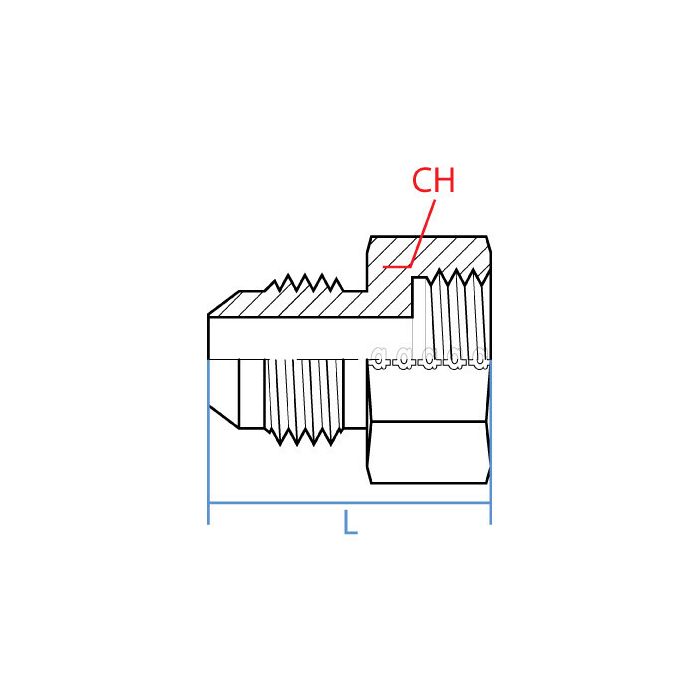

main product photo

Mjic X Fem.Flat China Metric

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this adapter connects a 1/2" male JIC fitting (3/4–16 UNF thread) to a 20mm female metric flat face port (M20 x 1.5), making it well-suited for hydraulic circuits that bridge JIC and metric flat face connections. The Mjic X Fem.Flat China Metric is an Adaptall adapter designed for reliable performance in mixed-standard hydraulic assemblies where these two connection types meet.

With a body width of 27mm and an overall length of 28.7mm, the compact straight profile suits installations where space is limited. Steel construction provides the durability expected in industrial hydraulic environments.

SKU: 9022FC-08-20

Supplier Part Number (MPN): 9022FC-08-20

Specifications

Connection Size 1
1/2 in
Connection Size 2
20 mm
Connection Type
Female Metric, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Flat Face Metric
Dimension Standards
GB/T 9065.3, ISO 8434-2, SAE J514
Dimensions
28.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9022FC Series
Thread Size
M20x1.5 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gary R on Sep 30, 2025, 6:48 AM
trying to connect a JIC fitting on one end to a metric flat face port on the other, this the right part for that?
Answer by: Customer Support on Oct 1, 2025, 3:31 PM
That's what this adapter is built for. One end is a 3/4-16 UNF male JIC, which is your 1/2 inch JIC side, and the other end is a female M20 x 1.5 metric flat face. So if you've got a JIC line meeting a Chinese metric flat face port, this bridges that gap in a straight configuration. Steel construction, 28.7mm in length, 27mm wrench width.
