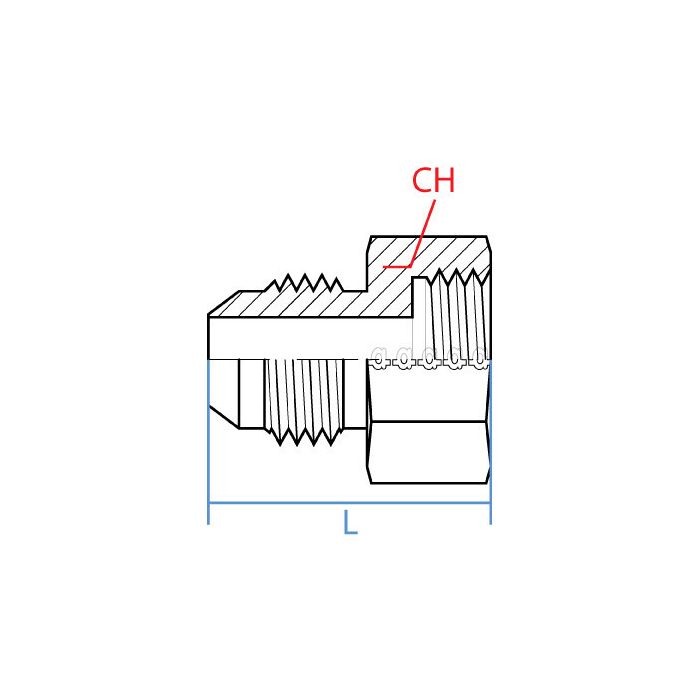

main product photo

Mjic X Fem.Flat China Metric

Ask A Question

Description & Features

This straight steel adapter from Adaptall America connects a 1/2" male JIC fitting (3/4-16 UNF thread) on one end to a 22mm female metric flat face port (M22 x 1.5 thread) on the other, making it suitable for hydraulic systems that cross between JIC and China metric flat face standards. The Mjic X Fem.Flat China Metric measures 28.7mm in length with a 27mm wrench width, providing a compact, reliable transition between these two common connection types.

Constructed from steel, this adapter is well-suited for medium to high-pressure hydraulic circuits where thread compatibility between imperial JIC and metric flat face fittings is required. The straight configuration simplifies installation in line assemblies where a direct, in-line connection is practical.

SKU: 9022FC-08-22

Supplier Part Number (MPN): 9022FC-08-22

Specifications

Connection Size 1
1/2 in
Connection Size 2
22 mm
Connection Type
Female Metric, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female Flat Face Metric
Dimension Standards
GB/T 9065.3, ISO 8434-2, SAE J514
Dimensions
28 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9022FC Series
Thread Size
M22x1.5 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Randy P on Jul 13, 2025, 11:03 AM
got a JIC fitting on my hydraulic line and need to tie into a metric flat face port on some equipment we picked up, this the right adapter for that?
Answer by: Customer Support on Jul 15, 2025, 7:29 AM
That's exactly the crossover this part handles. One end is a 3/4-16 UNF male JIC, which is your standard 1/2" JIC fitting. The other end is a female M22 x 1.5 metric flat face port connection. Steel construction, straight body, so it threads right in without any angles or offsets to work around. If your line ends in a male JIC and your port is a 22mm metric flat face, this adapter bridges that gap cleanly.
