Male Npt X Female Bspp Swivel

Description & Features

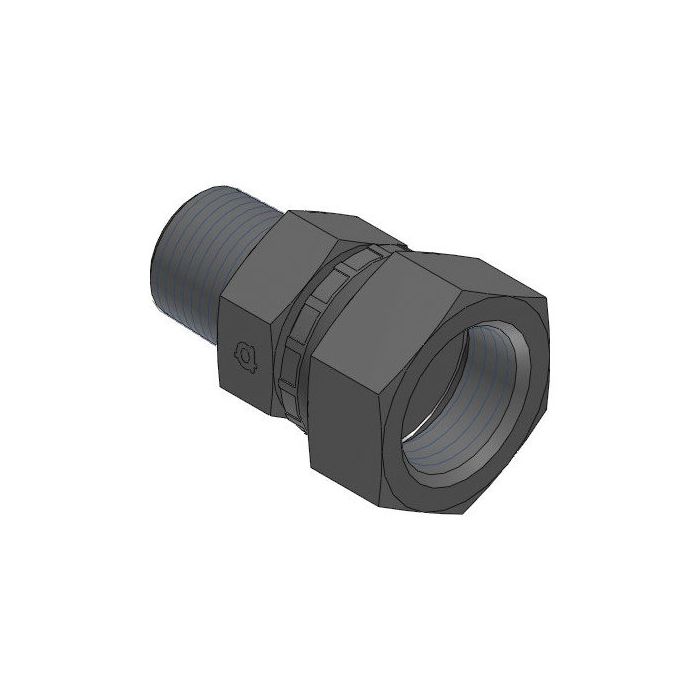

This steel straight adapter features a male NPT end and a female BSPP swivel end. The NPT end has a 3/8" size with a 3/8 - 18 NPTF callout, while the BSPP swivel end has a 1/2" size with a G 1/2 - 14 callout.

The Adaptall Male NPT X Female BSPP Swivel has a Ch1 width of 22mm and a Ch2 width of 27mm. Its overall length (L) measures 45mm.

SKU: 9023-06-08

Supplier Part Number (MPN): 9023-06-08

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP Swivel
Dimension Standards
ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Dimensions
43.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9023 Series
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/8-18 Male NPT To 3/8-19 Female BSPP (British Parallel) Swivel, Straight

9023-06-06 Steel Male NPT To Female BSPP Adapter

3/8 in

3/8 in

3/8-19 x 3/8-18

17 x 22 mm

Steel Adapter, 1/4-18 Male NPT To 1/4-19 Female BSPP (British Parallel) Swivel, Straight

9023-04-04 Steel Male NPT To Female BSPP Adapter

1/4 in

1/4 in

1/4-19 x 1/4-18

Steel Adapter, 1/2-14 Male NPT To 1/2-14 Female BSPP (British Parallel) Swivel, Straight

9023-08-08 Steel Male NPT To Female BSPP Adapter

1/2 in

1/2 in

1/2-14

Male Npt X Female Bspp Swivel

9023-02-02

1/8 in

1/8 in

1/8-27 x G1/8-28

14 mm

Male Npt X Female Bspp Swivel

9023-04-06

1/4 in

3/8 in

1/4-19 x 3/8-18

19 x 22 mm

Male Npt X Female Bspp Swivel

9023-08-06

1/2 in

3/8 in

1/2-14 x 3/8-19

Male Npt X Female Bspp Swivel

9023-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

27 mm

Male Npt X Female Bspp Swivel

9023-12-12

3/4 in

3/4 in

3/4-14

Male Npt X Female Bspp Swivel

9023-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

Male Npt X Female Bspp Swivel

9023-16-16

1 in

1 in

1-11 x 1-11-1/2

Product Questions & Answers (1)

Question by: Ricky S on Jan 22, 2026, 9:18 PM
What’s the width on the flats for tightening this thing down?
Answer by: Customer Support on Jan 24, 2026, 7:02 PM
The wrench flats measure 22mm (Ch1) on one side and 27mm (Ch2) on the other.
