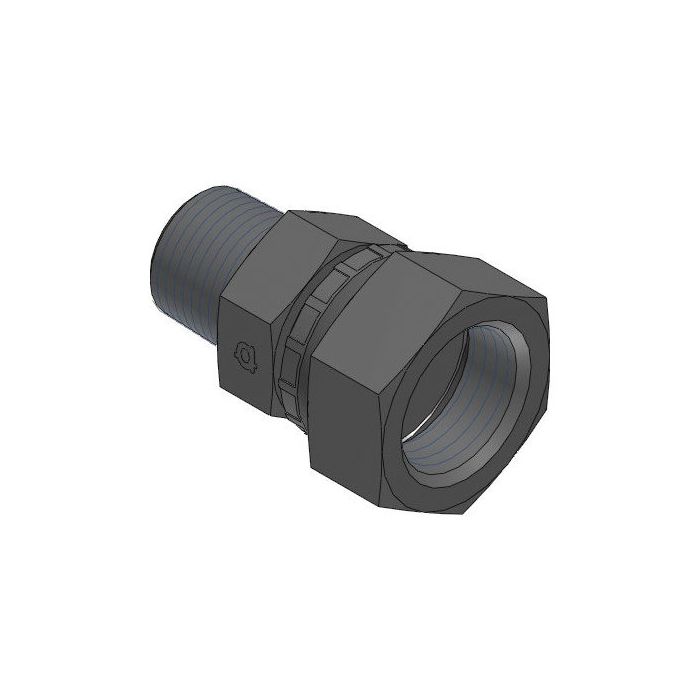

main product photo

Male Npt X Female Bspp Swivel

Ask A Question

Description & Features

Designed for connecting NPT and BSPP threaded ports in mixed-standard hydraulic systems, this Male NPT X Female BSPP Swivel is made from steel and configured in a straight profile. The male side features a 3/4" NPT thread (3/4-14 NPTF), while the female swivel end accepts a 1/2" BSPP connection (G 1/2-14), making it well suited for applications where inch and metric thread standards meet at a single junction.

With a body length of 50mm and matching 27mm wrench flats on both ends, the fitting is straightforward to install and torque correctly. The swivel feature on the female BSPP side allows for rotational adjustment during assembly, reducing stress on connected lines and simplifying routing in tight or fixed-orientation assemblies. Manufactured by Adaptall, this fitting is part of their modular adaptor system.

SKU: 9023-12-08

Supplier Part Number (MPN): 9023-12-08

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP Swivel
Dimension Standards
ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Dimensions
49 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9023 Series
Thread Size
3/4-14 x 1/2-14

Product Questions & Answers (2)

Question by: Rusty M on Dec 2, 2025, 5:48 PM
Got a machine here running 3/4 NPT ports and the component I'm hooking into has a 1/2 BSPP female port on it. This fitting bridge that gap straight across?
Answer by: Customer Support on Dec 4, 2025, 10:41 AM
Yeah, that's exactly what this one's for. The male end is 3/4-14 NPTF, which threads right into your NPT port, and the female swivel side accepts a 1/2 BSPP connection at G 1/2-14. Straight profile, so no angle change in the line routing. The size step-down from 3/4 to 1/2 is built into the fitting itself, so no additional reducer needed at that junction.
Question by: Larry F on Apr 23, 2025, 7:31 AM
trying to hook a 3/4 npt port to a g 1/2 bspp hose end, is this the right adapter?
Answer by: Customer Support on Apr 25, 2025, 6:09 AM
For mixed thread standards, it matches that combo: one side is a 3/4 inch male NPTF thread (3/4-14) and the other side is a 1/2 inch female BSPP swivel (G 1/2-14).
