Male Npt X Female Bspp Swivel

Description & Features

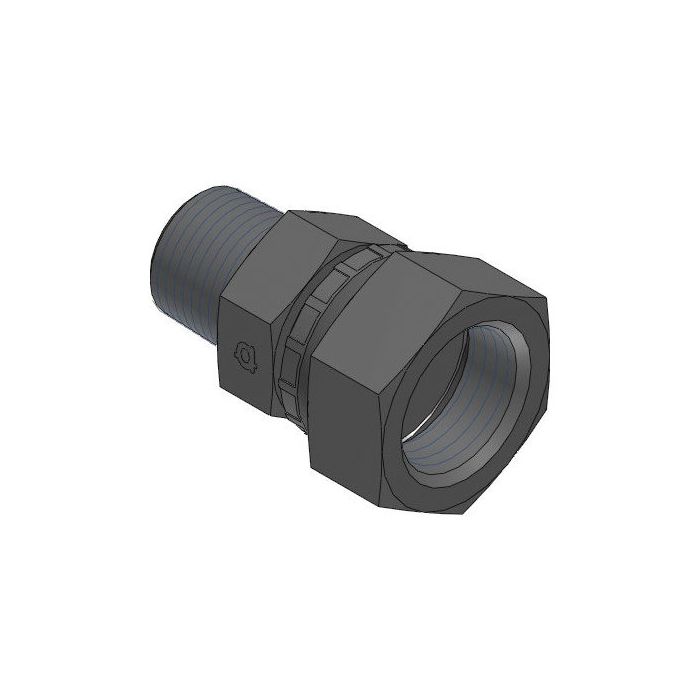

Adaptall America offers the Male Npt X Female Bspp Swivel, an essential component engineered for various industrial applications. This straight-shaped adapter, crafted from durable steel, ensures a reliable connection between 3/4 - 14 NPTF male threads and G 3/4 - 14 BSPP female threads.

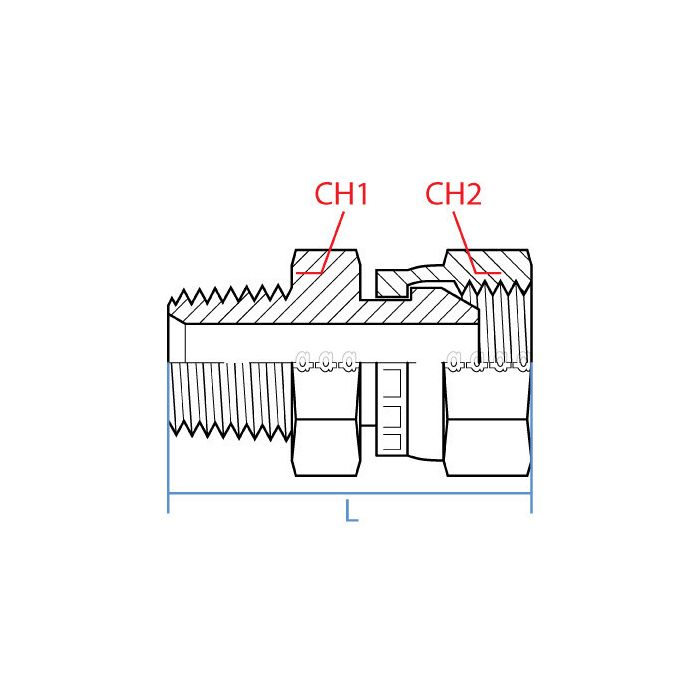

The connector has a length of 52mm, with width dimensions of 27mm on CH1 and 32mm on CH2. Designed for seamless integration, it guarantees robust performance and longevity under demanding conditions.

This adapter is not color-coded and does not include additional components such as a diode, check valve, or ratchet mechanism. With a focus on functionality, it excludes non-essential features like remote control or machine mountability.

Constructed to meet the high standards of industrial requirements, this adapter delivers consistency and efficiency in every application it serves.

Supplier Part Number: 9023-12-12

Specifications

CH1 Width 27mm	CH2 Width 32mm	L Length 52mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 14 NPTF	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Npt	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 9023-12-16-ADAPTALL, Alternate Part Number MI-02206370, Alternate Part Number MINO-03671X85059	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9023-12-12	Product Weight 0.30 lbs

Product Questions & Answers (1)

Question by: Randy W on Jul 11, 2025, 12:17 PM

Got a piece of equipment running BSPP fittings on one end and NPT on the other, does this adapter go between them without needing extra hardware?

Answer by: Customer Support on Jul 13, 2025, 6:50 AM

Straight swap, no extra pieces needed. One side is a 3/4-14 NPTF male thread, the other is a G 3/4-14 BSPP female swivel. Steel construction, 52mm long, so it bridges those two thread standards directly. Just make sure your existing fittings match those sizes and thread types before ordering.
