Male Npt X Female Bspp Swivel

Description & Features

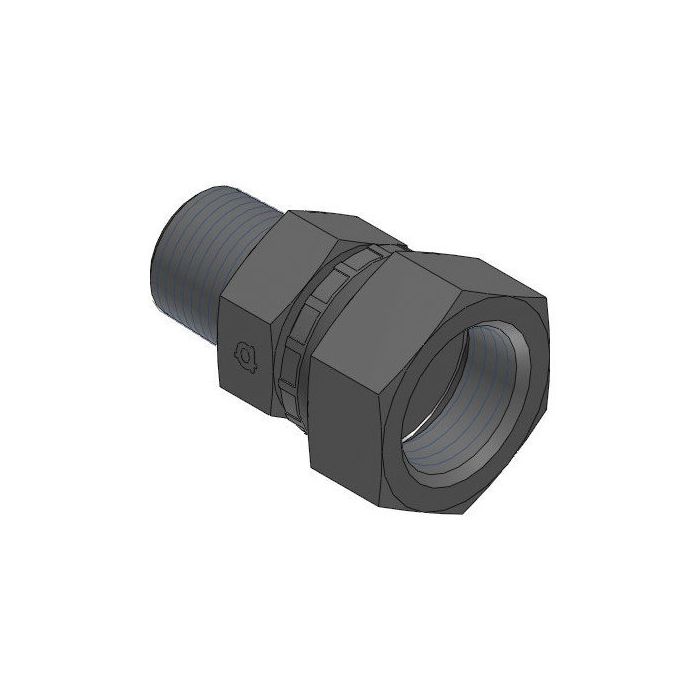

This straight steel swivel adapter features a 1" male NPT end and a 3/4" female BSPP swivel end.

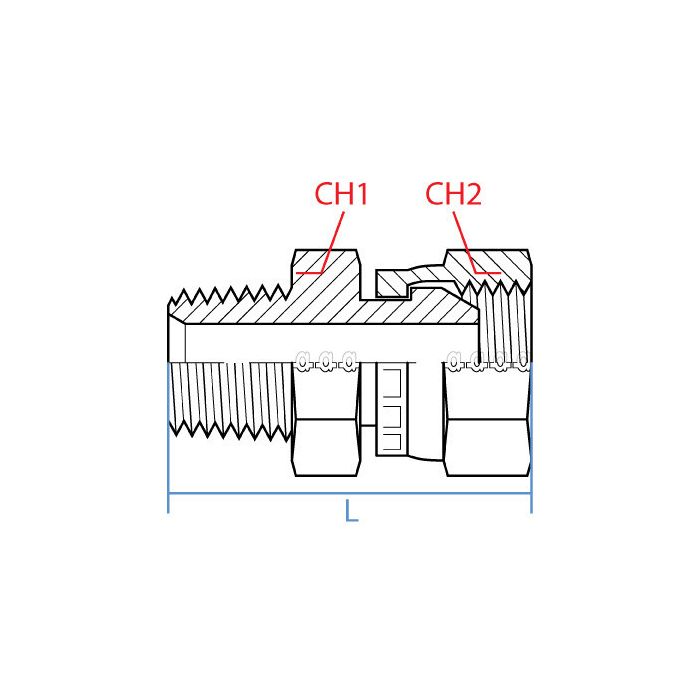

This Adaptall fitting has a Side 1 callout of 1 - 11.5 NPTF, with a 35mm width across its flats. The Side 2 callout is G 3/4 - 14, with a 32mm width across its flats. The Adaptall Male Npt X Female Bspp Swivel has an overall length of 58mm.

SKU: 9023-16-12

Supplier Part Number (MPN): 9023-16-12

Specifications

CH1 Width 35mm	CH2 Width 32mm	L Length 58mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1 - 11.5 NPTF	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Npt	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9023-16-12	Product Weight 0.50 lbs

Product Questions & Answers (2)

Question by: Billy M on Jan 11, 2026, 6:48 PM

Will this here fitting hold up alright for connecting a hydraulic line to a valve? Just wanna make sure before I order it.

Answer by: Customer Support on Jan 13, 2026, 6:35 PM

This straight steel swivel adapter is designed for connecting lines with different thread types, specifically a 1" male NPT to a 3/4" female BSPP swivel.

Question by: Glen B on Feb 13, 2026, 12:50 PM

Got a machine running 1" NPT ports on the supply side and the foreign-built cylinder takes 3/4 BSPP on the other end, this fitting bridge that gap?

Answer by: Customer Support on Feb 14, 2026, 2:33 PM

That's the situation this adapter handles. One end is 1 inch male NPT, threaded at 1-11.5 NPTF, and the other is 3/4 inch female BSPP with a G 3/4-14 thread. The swivel on the female end makes alignment a lot less of a headache during installation. Steel construction, straight configuration, 58mm overall length. Solid choice for connecting NPT hydraulic connections to BSPP equipment without having to modify either side.
