Male Npt X Female Bspp Swivel

Description & Features

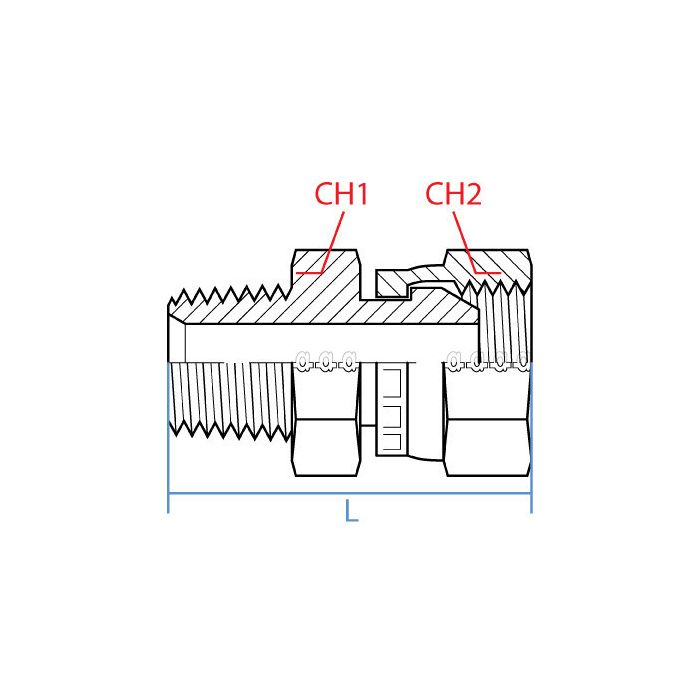

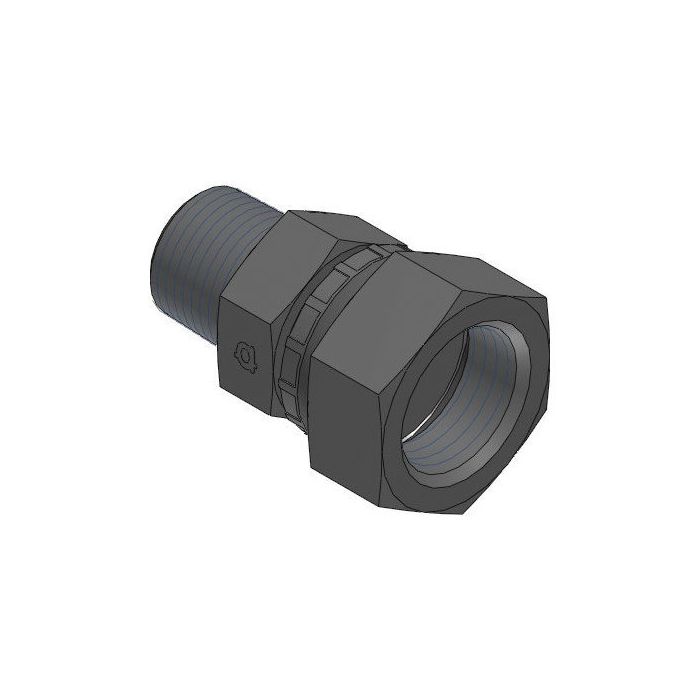

Crafted from durable steel, the Adaptall Male NPT x Female BSPP Swivel adapter is designed for high-performance hydraulic systems. This straight adapter features a 1-inch Male NPT thread on one end and a 1-inch Female BSPP thread on the other, facilitating secure and efficient connections in industrial applications. With channel widths of 38mm and 41mm, and a total length of 64mm, this adapter is engineered to meet demanding specifications while ensuring reliable functionality.

The precision-manufactured threads ensure a tight, leak-free fit, making it an ideal choice for critical hydraulic systems requiring dependable performance. The robust design and high-quality materials ensure longevity and resistance to demanding environments, providing peace of mind in both installation and operation.

SKU: 9023-16-16

Supplier Part Number (MPN): 9023-16-16

Alternate Part Numbers: MI-03504057, MINO-03671X58595

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female BSP Swivel, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP Swivel
Dimension Standards
ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Dimensions
63.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9023 Series
Thread Size
1-11 x 1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 3/8-18 Male NPT To 3/8-19 Female BSPP (British Parallel) Swivel, Straight

9023-06-06 Steel Male NPT To Female BSPP Adapter

3/8 in

3/8 in

3/8-19 x 3/8-18

17 x 22 mm

Steel Adapter, 1/4-18 Male NPT To 1/4-19 Female BSPP (British Parallel) Swivel, Straight

9023-04-04 Steel Male NPT To Female BSPP Adapter

1/4 in

1/4 in

1/4-19 x 1/4-18

Steel Adapter, 1/2-14 Male NPT To 1/2-14 Female BSPP (British Parallel) Swivel, Straight

9023-08-08 Steel Male NPT To Female BSPP Adapter

1/2 in

1/2 in

1/2-14

Male Npt X Female Bspp Swivel

9023-02-02

1/8 in

1/8 in

1/8-27 x G1/8-28

14 mm

Male Npt X Female Bspp Swivel

9023-04-06

1/4 in

3/8 in

1/4-19 x 3/8-18

19 x 22 mm

Male Npt X Female Bspp Swivel

9023-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

Male Npt X Female Bspp Swivel

9023-08-06

1/2 in

3/8 in

1/2-14 x 3/8-19

Male Npt X Female Bspp Swivel

9023-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

27 mm

Male Npt X Female Bspp Swivel

9023-12-12

3/4 in

3/4 in

3/4-14

Male Npt X Female Bspp Swivel

9023-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

Product Questions & Answers (1)

Question by: Wayne T on Nov 6, 2025, 6:23 AM
What's the wrench size needed for this fitting? I see 38mm and 41mm listed.
Answer by: Customer Support on Nov 8, 2025, 6:29 AM
Looks like you'll need a 38mm wrench for one side and a 41mm wrench for the other.
