Female Bspp Swivel X Swivel

Ask A Question

Description & Features

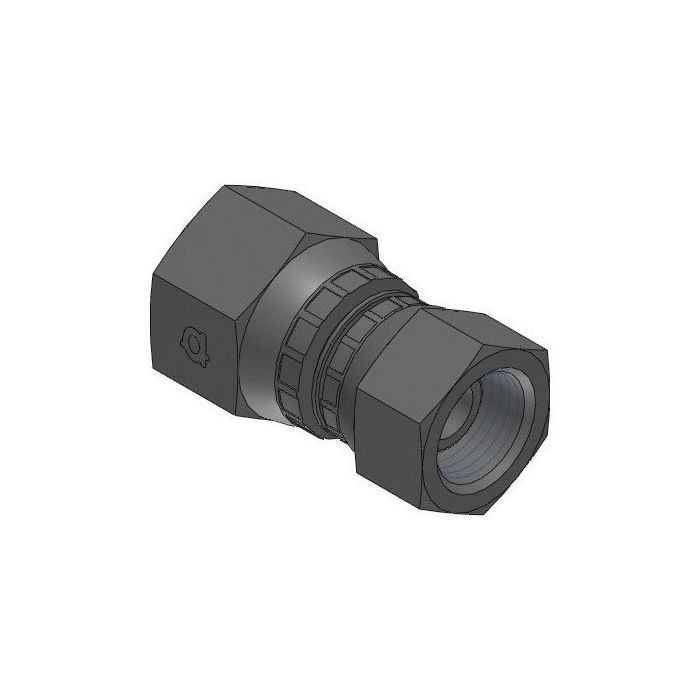

Manufactured from steel in a straight configuration, this Adaptall Female Bspp Swivel X Swivel adapter connects a 1" G 1-11 BSPP female swivel port to a 1/2" G 1/2-14 BSPP female swivel port, making it well suited for reducing or transitioning between two different BSPP thread sizes within hydraulic systems.

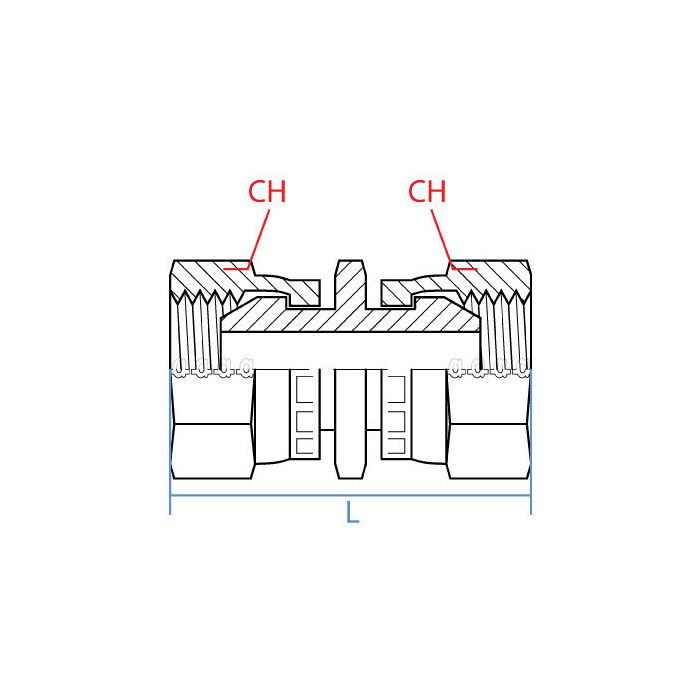

The dual swivel design on both ends allows for easier assembly and alignment without twisting hoses or lines. With an overall length of 50mm and wrench flats of 38mm and 25mm on each respective end, the adapter is dimensionally suited for compact installations where space around fittings may be limited.

SKU: 9025-16-08

Supplier Part Number (MPN): 9025-16-08

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel
Connection Type 1
Female BSPP 60 deg Flare Swivel
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200
Dimensions
49.5 mm L
Finish
Zinc-Plated
Fitting Type
Union
Material
Steel
Material Construction
Carbon Steel
Series
9025 Series
Thread Size
1-11 x 1/2-14

Product Questions & Answers (2)

Question by: Neal E on Jan 18, 2026, 11:10 AM
Got a 1-inch BSPP line feeding into a half-inch BSPP port, does this fitting handle that kind of size drop without needing anything else in between?
Answer by: Customer Support on Jan 19, 2026, 5:08 PM
That's exactly what this adapter is built for. One end threads onto a 1 inch G 1-11 BSPP female swivel port and the other connects to a 1/2 inch G 1/2-14 BSPP female swivel port, so you're going straight from the larger size down to the smaller one in a single piece. No additional reducer needed between them. The straight configuration keeps things in line, and at 50mm overall length it fits into tighter spots where stacking multiple fittings just isn't practical.
Question by: Melvin G on Apr 12, 2025, 10:08 AM
Will this here fitting work to join a one inch BSPP female swivel to a half inch BSPP female swivel?
Answer by: Customer Support on Apr 13, 2025, 12:41 PM
Yes, that's precisely what this adapter is designed for, connecting a 1" BSPP female swivel to a 1/2" BSPP female swivel.
