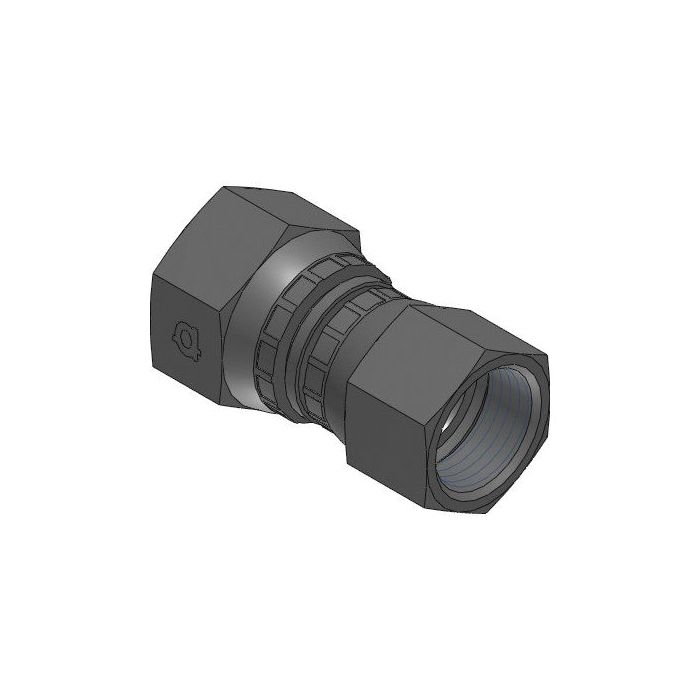

main product photo

Swivel Jic X Swivel Jic Union

Ask A Question

Description & Features

This straight steel union features JIC connections on both ends, offering a reliable connection between hydraulic lines. With a 5/8" Side 1 Size and 1/2" Side 2 Size, the Swivel JIC X Swivel JIC Union adapts different sized lines in hydraulic applications.

The Adaptall union's Side 1 has a 7/8 - 14 UNF thread, while Side 2 has a 3/4 - 16 UNF thread. The Adaptall Ch1 Width measures 25mm and the Adaptall Ch2 Width measures 22mm, with an Adaptall L Length of 52mm.

SKU: 9026-10-08

Supplier Part Number (MPN): 9026-10-08

Specifications

Brand
adapt-all
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel
Connection Type 1
Female JIC Swivel
Connection Type 2
Female JIC Swivel
Dimension Standards
SAE J514
Dimensions
48 mm L
Finish
Zinc-Plated
Fitting Type
Union
Material
Steel
Material Construction
Carbon Steel
Series
9026 Series
Thread Size
7/8-14 x 3/4-16

Product Questions & Answers (2)

Question by: Larry C on May 30, 2025, 1:13 PM
Got a hydraulic line running 5/8" on one end and 1/2" on the other, will this union tie them two together direct, or do I need something else in between?
Answer by: Customer Support on Jun 1, 2025, 10:47 AM
That's exactly what this fitting handles. One side threads onto a 7/8-14 UNF JIC connection for the 5/8" line, and the other picks up the 3/4-16 UNF JIC connection for the 1/2" line. Both ends swivel, so you can get it seated without having to twist the hoses themselves. Steel construction, straight body, 52mm end to end. No additional adapters needed for that size combination.
Question by: Freddie B on Feb 5, 2026, 9:16 PM
trying to hook a 5/8 jic hose to a 1/2 jic line, is this the right union for that?
Answer by: Customer Support on Feb 7, 2026, 3:51 PM
For stepping between those two JIC sizes, this union matches up as 5/8 inch JIC female swivel on one end and 1/2 inch JIC female swivel on the other. The thread callouts are 7/8 - 14 UNF on Side 1 and 3/4 - 16 UNF on Side 2.
