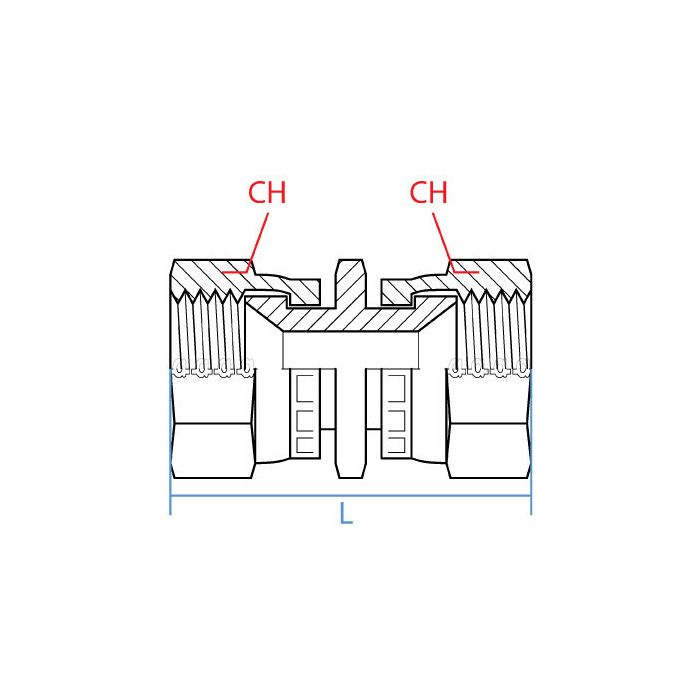

main product photo

Swivel Jic X Swivel Jic Union

Ask A Question

Description & Features

This Adaptall steel union features swivel JIC connections on both ends for flexible connections in hydraulic systems. The straight union adapts between different JIC fitting sizes, with a 1" female JIC on one side and a 3/4" female JIC on the other.

The larger side 1 has a 1-5/16 - 12 UN callout and a width of 38mm. The side 2 features a 1-1/16 - 12 UN callout, with a width of 32mm. The Adaptall Swivel Jic X Swivel Jic Union has an overall length of 63mm.

SKU: 9026-16-12

Supplier Part Number (MPN): 9026-16-12

Specifications

Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel
Connection Type 1
Female JIC Swivel
Connection Type 2
Female JIC Swivel
Dimension Standards
SAE J514
Dimensions
59 mm L
Finish
Zinc-Plated
Fitting Type
Union
Hex Size
32 x 38 mm
Material
Steel
Material Construction
Carbon Steel
Series
9026 Series
Thread Size
1-5/16-12 x 1-1/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kirk M on Jan 23, 2026, 6:32 PM
Got a line running 1-inch JIC on one end and 3/4-inch JIC on the other, does this union handle that crossover in a straight shot?
Answer by: Customer Support on Jan 25, 2026, 5:08 PM
That's what this fitting does. One side connects to a 1-inch female JIC with a 1-5/16-12 UN thread, and the other picks up the 3/4-inch female JIC at 1-1/16-12 UN. Both ends swivel, so you get some wiggle room during installation without fighting the line to get it seated right. The body is straight steel, 63mm overall, so it's a compact solution for bridging those two sizes without adding a bunch of length to the assembly.
