Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this straight adapter connects a 1/4" female BSPP port (G 1/4 - 19) to a 1/4" female JIC swivel end (7/16 - 20 UNF). The swivel design on the JIC side allows for easier installation and alignment in tight or restricted spaces without requiring rotation of the connected line.

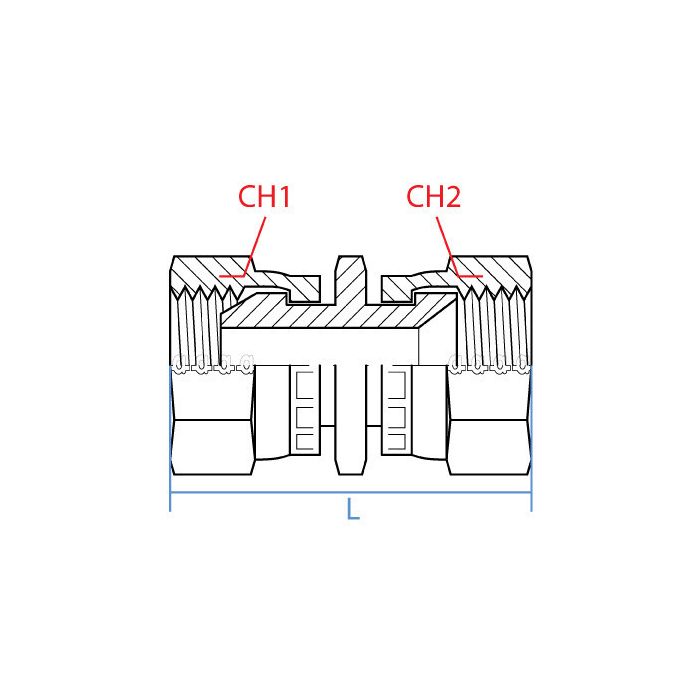

The Female BSPP X Female JIC Swiv. is an Adaptall fitting with an overall length of 37.5mm. Wrench flats measure 19mm on the BSPP side and 14mm on the JIC side. It is suited for hydraulic circuit assembly where BSPP and JIC threaded connections must interface within the same system.

SKU: 9027-04-04

Supplier Part Number (MPN): 9027-04-04

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
34.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
7/16-20 x 1/4-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Shane W on Jul 5, 2025, 6:36 PM
Will this fitting hold up okay in a hydraulic setup with some decent pressure behind it?
Answer by: Customer Support on Jul 7, 2025, 6:21 AM
Being manufactured from steel, this adapter is built to handle the pressures typically found in hydraulic circuits.
Question by: Carl M on Oct 12, 2025, 10:47 AM
Got a line running BSPP on one end and JIC on the other, this fitting gonna let me hook those up without having to rotate the whole line?
Answer by: Customer Support on Oct 13, 2025, 5:16 PM
That's what it's built for. The JIC side has a swivel on it, so you can get the connection made without spinning the hose or tube line to thread it in. Makes life a lot easier when you're working in a spot where there ain't much room to maneuver. BSPP side is a fixed female G 1/4-19, and the JIC side is a female 7/16-20 UNF swivel. Both ports are 1/4 inch. Steel construction, straight through, 37.5mm overall length.
