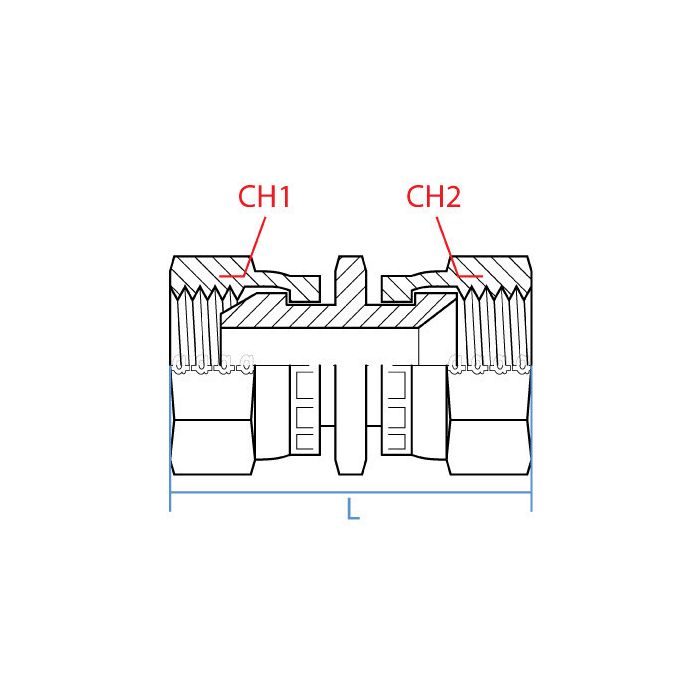

Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

Constructed from durable steel, this Female BSPP x Female JIC Swivel adapter is designed to ensure secure and reliable connections in hydraulic systems. Featuring a straight configuration, the adapter supports G 3/8 - 19 BSPP threads on one end and 9/16 - 18 UNF JIC threads on the other, both in a 3/8" size. This makes it suitable for various industrial applications where precise and leak-free connections are essential.

The adapter's compact size, with an overall length of 42mm, and width dimensions of 22mm and 19mm for the respective connections, allow for easy installation in tight spaces. Engineered by Adaptall, a trusted name in hydraulic components, this swivel adapter ensures optimal performance and is ideal for use in demanding environments.

SKU: 9027-06-06

Supplier Part Number (MPN): 9027-06-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
39.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
9/16-18 x 3/8-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Duane D on Mar 12, 2026, 4:27 PM
Will this fitting hold up in a hydraulic system running at, say, 2000 psi?
Answer by: Customer Support on Mar 13, 2026, 8:12 PM
This adapter is made from durable steel, so it should provide secure and reliable connections in demanding hydraulic systems.
Question by: Johnny C on Feb 8, 2026, 9:46 PM
Got a line running G 3/8 BSPP on one end and JIC on the other, this swivel adapter gonna bridge that gap without needing extra fittings in between?
Answer by: Customer Support on Feb 10, 2026, 6:03 AM
That's what it's built for. One end is G 3/8-19 BSPP female, the other is 9/16-18 UNF JIC female, both in 3/8" size, so it handles that thread mismatch in a single piece. Steel construction keeps it solid under the kind of conditions most hydraulic lines deal with day to day.
Question by: Tammy M on Aug 10, 2025, 7:41 PM
trying to hook up a hose that’s got a 9/16-18 JIC end to a port that’s G 3/8-19 BSPP. Is this the right adapter?
Answer by: Customer Support on Aug 12, 2025, 4:19 PM
Match the thread callouts and you’re in the right ballpark: one side is female G 3/8-19 BSPP and the other side is female 9/16-18 UNF JIC, both in a 3/8 inch size.
