Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

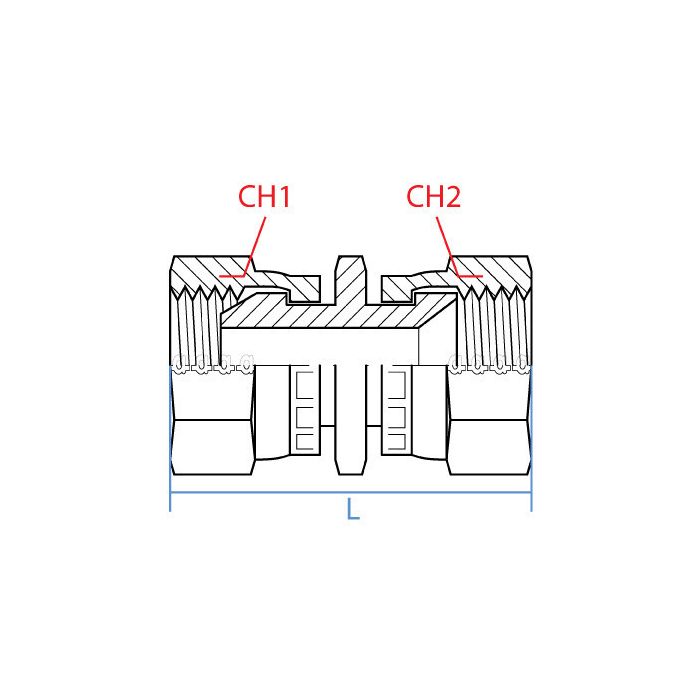

This straight steel adapter features a female BSPP Side 1 connection and a female JIC Side 2 connection. The Adaptall Side 1 connection measures G 1/2 - 14, while Side 2 measures 3/4 - 16 UNF, both with a 1/2" size. The Adaptall Ch1 Width is 27mm and Adaptall Ch2 Width is 22mm, with an Adaptall L Length of 47mm. This Female BSPP X Female JIC Swiv. adapter ensures secure and reliable connections in various hydraulic applications.

SKU: 9027-08-08

Supplier Part Number (MPN): 9027-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
44 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Curt J on Nov 19, 2025, 6:18 PM
got a line running G 1/2 BSPP on one end and JIC 3/4-16 on the other, this the right piece to bridge those two?
Answer by: Customer Support on Nov 21, 2025, 6:15 AM
That's what this adapter is built for. One side is a female BSPP at G 1/2-14 and the other is a female JIC at 3/4-16 UNF, both in the 1/2" size range. The straight steel body keeps it simple with no angled offset, so it drops right in where space isn't a concern. Overall length comes in at 47mm, which is pretty compact for a two-connection bridge like this.
Question by: Denise T on Oct 15, 2025, 7:49 AM
trying to hook a BSPP port to a JIC line, is this the right adapter for that?
Answer by: Customer Support on Oct 16, 2025, 11:49 AM
For a straight adapter that goes from female BSPP on one side to a female JIC swivel on the other, this one matches that job. Side 1 is BSPP G 1/2 - 14 female, and Side 2 is JIC 3/4 - 16 UNF female, both in a 1/2 inch size.
Question by: Diane M on Aug 30, 2025, 4:16 PM
Will this fitting work with both BSPP and JIC setups, or do I need different adapters for each?
Answer by: Customer Support on Sep 1, 2025, 1:47 PM
This adapter is designed to connect a female BSPP fitting to a female JIC fitting. So yes, it will directly adapt between those two thread types, eliminating the need for separate adapters.
