Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

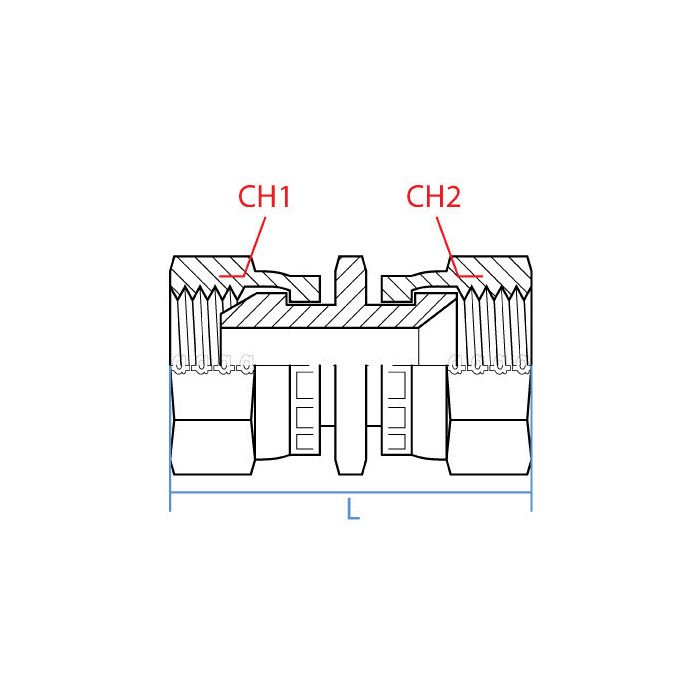

Constructed from steel in a straight configuration, this straight adapter connects a G 5/8-14 female BSPP port on one end to a 7/8-14 UNF female JIC swivel on the other, bridging two common thread standards within a single compact fitting. The Female BSPP X Female JIC Swiv. is part of the Adaptall interchangeable adapter system, designed to provide reliable thread conversion in hydraulic lines where BSPP and JIC connections meet.

At 51mm in length, with wrench flats of 30mm and 27mm on each respective side, the fitting accommodates standard tooling for installation. Both ports are sized at 5/8", keeping the flow path consistent across the connection. The steel construction suits demanding hydraulic service environments where durability and thread integrity are priorities.

SKU: 9027-10-10

Supplier Part Number (MPN): 9027-10-10

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
49.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
5/8-14 x 7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Debbie M on Dec 1, 2025, 2:50 PM
Got a piece of equipment running BSPP on one port and JIC on the other, this fitting supposed to handle that kind of crossover in a straight shot?
Answer by: Customer Support on Dec 3, 2025, 2:18 PM
That's what it's built for. One end is a G 5/8-14 female BSPP and the other is a 7/8-14 UNF female JIC swivel, so it bridges those two thread standards in a single straight fitting without needing extra adapters or couplings in between. Both sides are sized at 5/8", so the flow path stays consistent end to end. Steel construction holds up well in working hydraulic environments where you need solid thread engagement and durability over the long haul.
Question by: Dustin F on Nov 19, 2025, 10:35 AM
Can I use this to adapt from a BSPP fitting to a JIC on my tractor?
Answer by: Customer Support on Nov 20, 2025, 5:16 PM
This adapter bridges the gap between a G 5/8-14 female BSPP port and a 7/8-14 UNF female JIC swivel, so it should work as long as those are the sizes you need on your tractor. Just make sure everything is tightened properly.
