main product photo

Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

This steel, straight-shaped Adaptall fitting features a female BSPP X Female JIC Swiv connection.

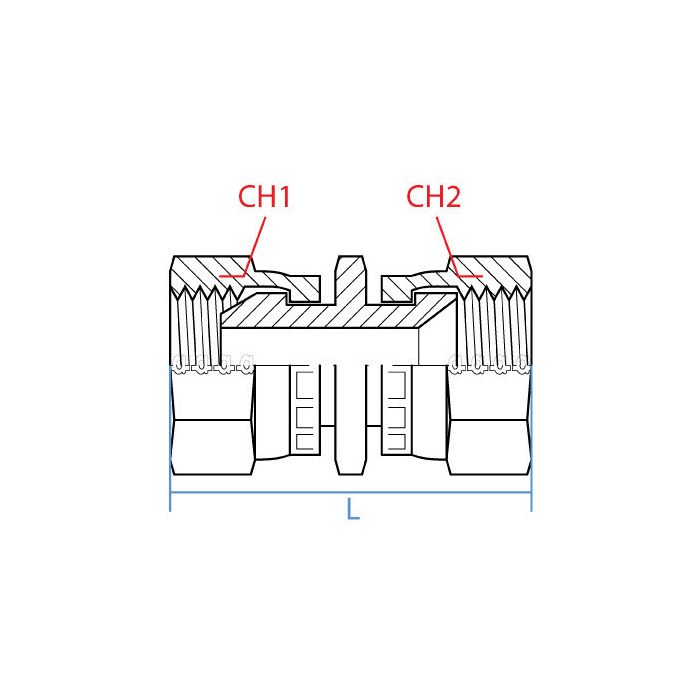

The side 1 connection is G 3/4 - 14 BSPP with a 3/4" size. Side 2 features a 1-1/16 - 12 UN JIC connection, also with a 3/4" size. Adaptall Ch1 Width and Adaptall Ch2 Width are both 32mm, with an Adaptall L Length of 56mm.

SKU: 9027-12-12

Supplier Part Number (MPN): 9027-12-12

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
54.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ricky F on Mar 3, 2026, 2:49 PM
Got a line running G 3/4 BSPP on one end and need to tie into a JIC 1-1/16-12 fitting on the other, this the right connector for that?
Answer by: Customer Support on Mar 4, 2026, 3:35 PM
That's what this fitting handles. One side is G 3/4-14 BSPP female and the other is a 1-1/16-12 UN JIC female swivel, both in 3/4" size. The swivel on the JIC end gives you a little wiggle room during installation so you're not fighting the line to get everything lined up straight.
