main product photo

Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

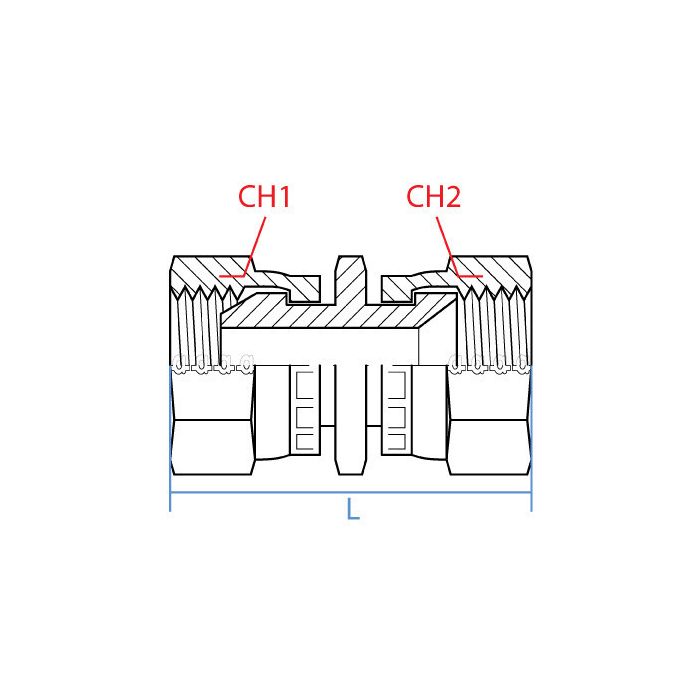

Crafted from durable steel, this hydraulic adapter offers a reliable solution for connecting different thread types. The Female Bspp X Female Jic Swiv. adapter features a straight shape, ideal for applications requiring precise alignment. With Adaptall Ch1 and Ch2 widths of 41mm and 38mm respectively, it provides robust connectivity. The adapter's Side 1 is a G 1 - 11 female Bspp, while Side 2 is a 1-5/16 - 12 UN female Jic, both accommodating 1-inch sizes.

This versatile adapter is designed to seamlessly integrate into hydraulic systems requiring conversion between Bspp and Jic threads. The 59mm length ensures a compact fit without compromising on performance. Whether employed in industrial machinery or complex hydraulic setups, this adapter ensures efficient fluid transfer and system integrity.

SKU: 9027-16-16

Supplier Part Number (MPN): 9027-16-16

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
56 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
1-5/16-12 x 1-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Lance P on Jul 12, 2025, 7:06 AM
Got a BSPP port on one piece of equipment and a JIC fitting on another, this the right adapter to bridge those two?
Answer by: Customer Support on Jul 13, 2025, 4:58 PM
That's what this one's built for. Side 1 is a G 1-11 female BSPP at 1 inch, and Side 2 is a 1-5/16-12 UN female JIC, also 1 inch. The swivel feature on the JIC end helps with alignment during hookup, so you're not fighting the connection to get everything to seat right. Steel construction throughout, straight profile, 59mm long. Should drop right into that application without any fuss.
