Female Bspp X Female Jic Swiv.

Ask A Question

Description & Features

This steel straight adapter features a female BSPP (British Standard Parallel Pipe) end and a female JIC (Joint Industry Council) swivel end. The Adaptall Female Bspp X Female Jic Swiv. is suitable for connecting different types of hydraulic fittings.

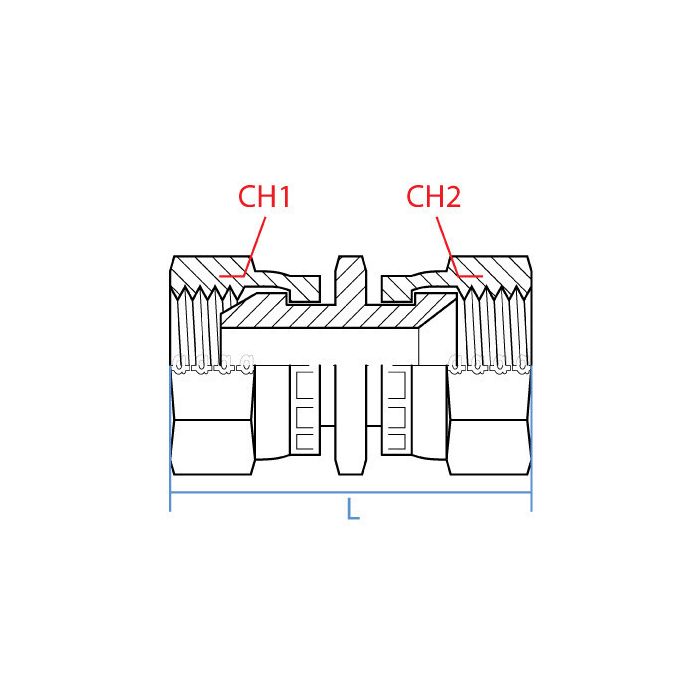

The side 1 (BSPP) connection measures 1-1/4" with a G 1-1/4 - 11 callout, and has a wrench flat of 51mm. The side 2 (JIC) connection measures 1-1/4" with a 1-5/8 - 12 UN callout, and has a wrench flat of 50mm. The fitting's overall length is 61.7mm.

SKU: 9027-20-20

Supplier Part Number (MPN): 9027-20-20

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female BSP, Female JIC Swivel
Connection Type 1
Female BSPP 60 deg Flare
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
59 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9027 Series
Thread Size
1-1/4-11 x 1-5/8-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Steve G on Jul 3, 2025, 8:34 PM
trying to hook a bspP hose end to a jic line, is this the straight adapter for that?
Answer by: Customer Support on Jul 5, 2025, 6:27 AM
Made for mixing those two standards, it has a female BSPP end on one side (G 1-1/4 - 11) and a female JIC swivel on the other (1-5/8 - 12 UN), both in the 1-1/4 inch size.
Question by: Chad B on Oct 4, 2025, 10:37 AM
Got a piece of equipment that's got a 1-1/4 BSPP port on one end and a JIC line coming off the other, this adapter gonna bridge them two together?
Answer by: Customer Support on Oct 6, 2025, 8:54 AM
Yeah, that's exactly what it's built for. One end is a female BSPP connection sized at 1-1/4 inch with a G 1-1/4 - 11 thread, and the other is a female JIC swivel also at 1-1/4 inch running a 1-5/8 - 12 UN thread. Steel construction, straight body, 61.7mm overall length. If your port and your line match those specs, it'll connect them clean.
Question by: Gary D on Nov 16, 2025, 8:09 PM
What size wrench do I need for the BSPP side of this fitting?
Answer by: Customer Support on Nov 18, 2025, 4:29 PM
For the BSPP side, you'll need a 51mm wrench.
