Bspp Countersunk Sealed Plug+

Ask A Question

Description & Features

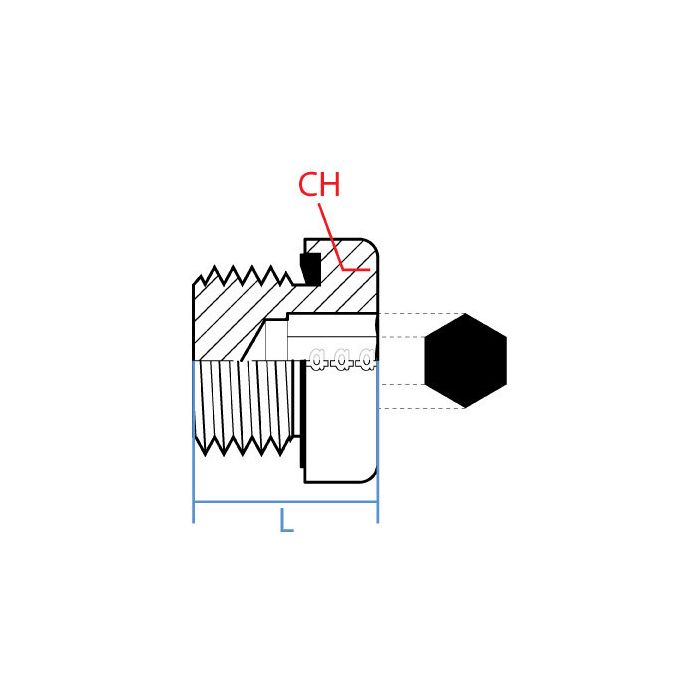

Manufactured in steel, this G 1/8 - 28 male BSPP plug is designed to seal unused ports in hydraulic manifolds, valve blocks, and related assemblies. The countersunk design allows the plug to seat flush or recessed within a port face, which is useful where protruding fittings would create clearance issues or obstruct mating components.

The Adaptall 9028-02 BSPP Countersunk Sealed Plug+ measures 12mm in length with a 14mm across-flats width, making it a compact sealing solution for 1/8" BSPP ported equipment. Steel construction provides durability suited to general industrial hydraulic service environments.

SKU: 9028-02

Supplier Part Number (MPN): 9028-02

Specifications

Brand
adapt-all
Connection Size 1
1/8 in
Connection Type
Male BSP
Connection Type 1
Male BSPP
Dimension Standards
BS 5200
Dimensions
12 mm L x 14 mm W
Finish
Zinc-Plated
Fitting Type
Plug
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
Series
9028 Series
Thread Size
1/8-28

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
Bspp Countersunk Sealed Plug

9028-04

1/4 in

1/4-19

7

Bspp Countersunk Sealed Plug

9028-06

3/8 in

3/8-19

9 mm

Bspp Countersunk Sealed Plug

9028-08

1/2 in

1/2-14

12 mm

Bspp Countersunk Sealed Plug

9028-12

3/4 in

3/4-14

14 mm

Bspp Countersunk Sealed Plug

9028-16

1 in

1-11

19 mm

Bspp Countersunk Sealed Plug

9028-20

1-1/4 in

1-1/4-11

Bspp Countersunk Sealed Plug

9028-24

1-1/2 in

1-1/2-11

28 mm

Product Questions & Answers (1)

Question by: Connie J on Aug 7, 2025, 3:09 PM
got a manifold block with some 1/8 BSPP ports I ain't using right now, will this plug seal those off proper?
Answer by: Customer Support on Aug 8, 2025, 9:41 PM
For unused 1/8" BSPP ports, this is exactly what you'd reach for. The male G 1/8-28 thread seats directly into standard BSPP ported manifolds and valve blocks, sealing off any ports you're not running lines to. Steel construction holds up well in general industrial hydraulic service, so it's not going to give you trouble sitting in a port long term.
