Male Bspt-Female Bspt Bushing

Description & Features

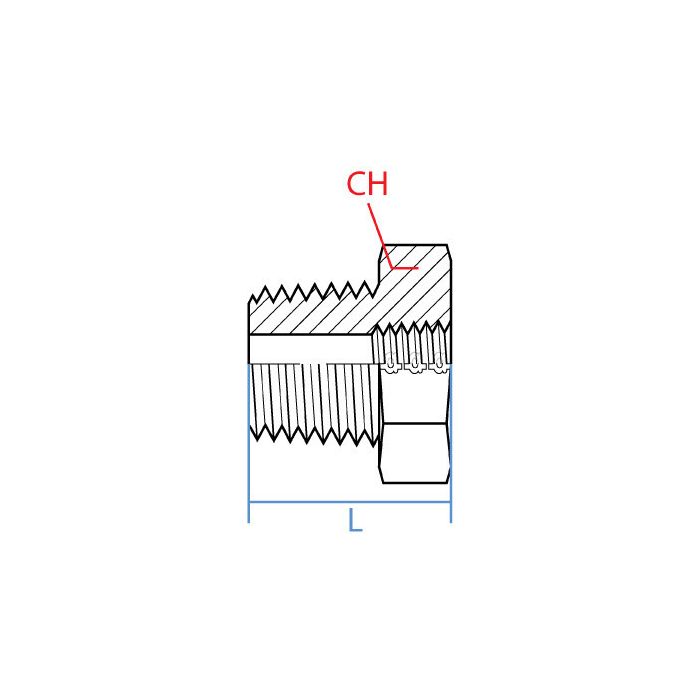

This steel bushing adapts between 3/8" male BSPT and 1/4" female BSPT connections. This Male Bspt-Female Bspt Bushing features a straight shape and an Adaptall wrench width of 17.5mm. It has an overall length of 25.5mm.

SKU: 9031-06-04

Supplier Part Number (MPN): 9031-06-04

Specifications

Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Female BSP, Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Female BSPT	Dimension Standards DIN EN 10226-1	Dimensions 24.5 mm L	Finish Zinc-Plated	Fitting Type Bushing	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 9031 Series	Thread Size 1/4-19 x 3/8-19

Product Questions & Answers (2)

Question by: Chad S on Aug 3, 2025, 11:31 AM

what's the thread count on both ends of this bushing? trying to match up to some existing fittings on a hydraulic line

Answer by: Customer Support on Aug 4, 2025, 7:11 PM

Both ends run a 19 threads per inch pitch. The male side is 3/8" BSPT and the female side steps down to 1/4" BSPT, so if your existing fittings follow that same R-series thread standard, this should line right up.

Question by: Joyce W on Jun 4, 2025, 9:05 AM

got a 3/8 BSPT male port but my hose end is 1/4 BSPT male. is this the little bushing i need?

Answer by: Customer Support on Jun 6, 2025, 6:50 AM

To step down between those two BSPT sizes, this bushing gives you a 3/8 inch BSPT male on one side and a 1/4 inch BSPT female on the other, so a 1/4 inch BSPT male fitting can thread into it.
