Male Bspt-Female Bspt Bushing

Description & Features

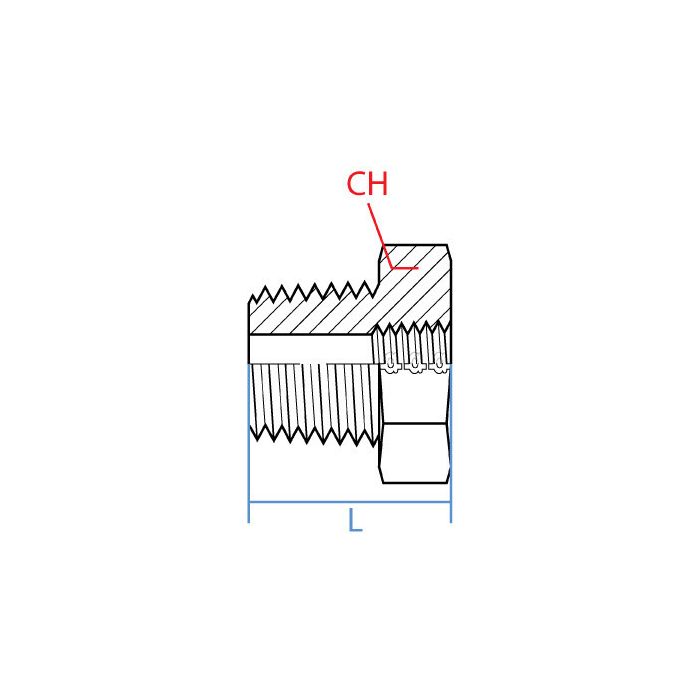

Constructed from steel in a straight configuration, this Male Bspt-Female Bspt Bushing adapts a 1/2" male BSPT thread (R 1/2-14) down to a 3/8" female BSPT thread (R 3/8-19). With an overall length of 30.1mm and a wrench width of 22mm, it is sized for straightforward installation in tight hydraulic assemblies where a compact reducer is needed between two BSPT-threaded connections.

Manufactured by Adaptall, this bushing is suited for hydraulic and fluid power circuits where thread size reduction is required without changing thread form. The all-steel construction provides the durability expected in industrial service environments.

SKU: 9031-08-06

Supplier Part Number (MPN): 9031-08-06

Specifications

Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Female BSP, Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Female BSPT	Dimension Standards DIN EN 10226-1	Dimensions 30 mm L	Finish Zinc-Plated	Fitting Type Bushing	Hex Size 22 mm	Material Steel	Material Construction Carbon Steel	Series 9031 Series	Thread Size 1/2-14 x 3/8-19

Product Questions & Answers (1)

Question by: Hubert M on Mar 16, 2026, 6:44 PM

I need to adapt from a half-inch male BSPT down to a 3/8 female BSPT. Will this do the trick without changing the thread type?

Answer by: Customer Support on Mar 17, 2026, 8:58 PM

That's what this bushing is for. It's designed to adapt a 1/2" male BSPT thread down to a 3/8" female BSPT thread, so you don't have to worry about changing the thread form.
