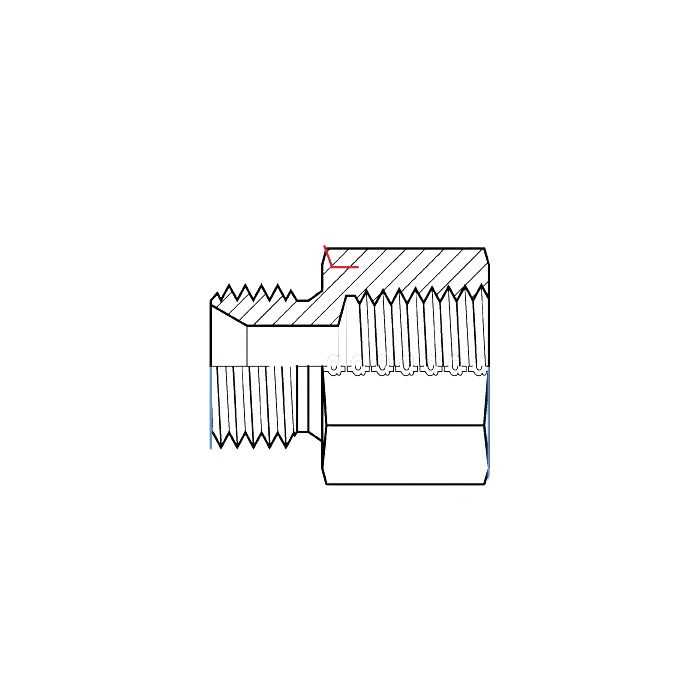

main product photo

Male Bspp X Female Npt

Ask A Question

Description & Features

A straight steel adapter connecting a male G 1/2 - 14 BSPP thread on one end to a female 1/2 - 14 NPTF thread on the other, the Male BSPP X Female NPT fitting is designed for joining hydraulic lines where British and North American thread standards meet. The straight configuration keeps the connection compact and inline, with an overall length of 40.8mm and a 27mm wrench width for straightforward installation and removal.

Manufactured from steel, this Adaptall adapter is suited for hydraulic systems requiring a reliable thread-form transition between BSPP and NPT connections at the 1/2" size. The male BSPP side conforms to the parallel thread profile standard, while the female NPT side accommodates the tapered thread form common in North American hydraulic and fluid power equipment.

SKU: 9035-08-08

Supplier Part Number (MPN): 9035-08-08

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male BSP
Connection Type 1
Male BSPP
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
40.8 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9035 Series
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Melvin A on Sep 22, 2025, 5:25 PM
Got a piece of equipment running 1/2" NPT female ports and need to tie into a BSPP line coming off a hydraulic component. This adapter gonna work for that hookup?
Answer by: Customer Support on Sep 23, 2025, 7:57 PM
Straight swap, yeah. The 9035-08-08 puts a male G 1/2-14 BSPP thread on one end and a female 1/2-14 NPTF on the other, so it bridges exactly that kind of mismatch. The BSPP side is parallel thread, the NPT side is tapered, and the two ends are sized at 1/2" across the board. Steel construction, inline straight configuration, nothing fancy but built for this exact job.
