Male Bspp X Female Npt

Ask A Question

Description & Features

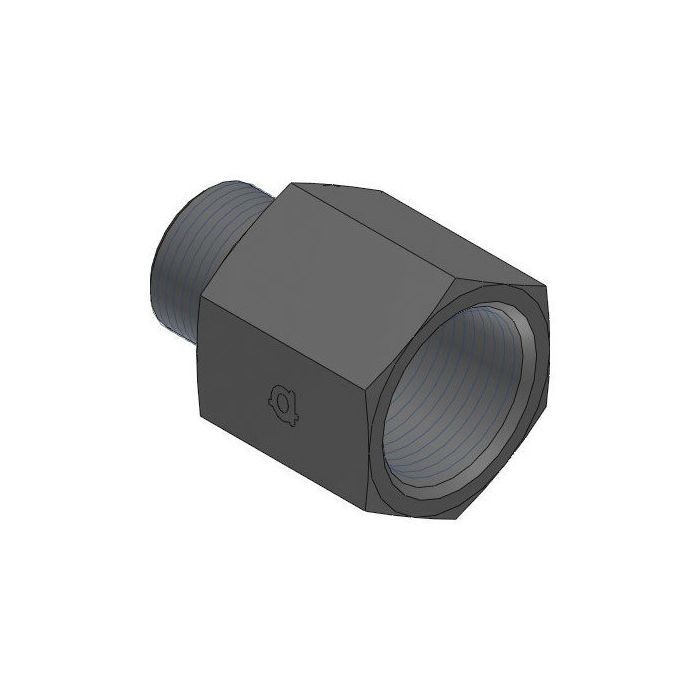

This steel straight adapter features a 1" male Bspp Side 1 with a G 1 - 11 callout and a 3/4" female Npt Side 2 with a 3/4 - 14 NPTF callout.

The Male Bspp X Female Npt adapter from Adaptall has a Side 1 size of 1" and Side 2 size of 3/4". It has an Adaptall Ch Width of 41mm and Adaptall L Length of 54.7mm.

SKU: 9035-16-12

Supplier Part Number (MPN): 9035-16-12

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
FNPT, Male BSP
Connection Type 1
Male BSPP
Connection Type 2
Female NPT
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
54 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9035 Series
Thread Size
1-11 x 3/4-14

Product Questions & Answers (2)

Question by: Harvey B on Mar 20, 2026, 2:19 PM
Is this steel? Just wanna make sure before I order.
Answer by: Customer Support on Mar 21, 2026, 5:29 PM
the Adaptall adapter is made from steel.
Question by: Shawn M on Jun 28, 2025, 8:51 AM
got a hose end that’s G 1-11 male BSPP. will this adapter let me screw into a 3/4 female npt port?
Answer by: Customer Support on Jun 30, 2025, 6:51 AM
It’s a straight steel adapter with a 1 inch male BSPP on Side 1 (G 1 - 11) and a 3/4 inch female NPT on Side 2 (3/4 - 14 NPTF), so it’s meant to transition from that G 1 - 11 male BSPP connection over to a 3/4 female NPT thread.
