Male Bspp X Female Npt

Description & Features

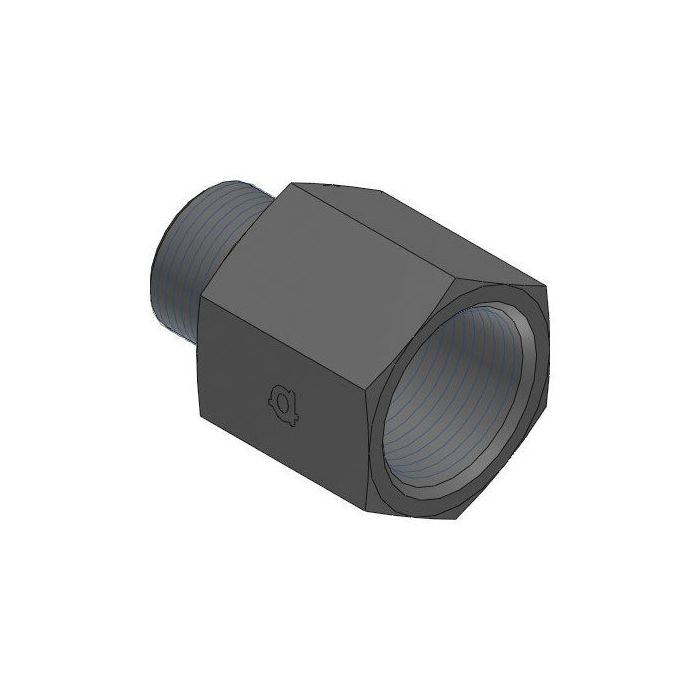

This steel straight fitting adapts between BSPP and NPT standards. It features a 1-1/2" male BSPP side with G 1-1/2 - 11 callout and a 1" female NPT side with 1 - 11.5 NPTF callout.

The Male Bspp X Female Npt adapter has an Adaptall channel width of 55mm and an overall length of 35.5mm.

SKU: 9035-24-16

Supplier Part Number (MPN): 9035-24-16

Specifications

Brand adapt-all	Connection Size 1 1-1/2 in	Connection Size 2 1 in	Connection Type FNPT, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female NPT	Dimension Standards ANSI B1.20.3, BS 5200	Dimensions 36 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9035 Series	Thread Size 1-1/2-11 x 1-11-1/2

Product Questions & Answers (1)

Question by: Neal Y on Sep 29, 2025, 8:58 PM

trying to hook a G 1-1/2 bspP male into a 1 inch npt port, is that what this adapter is for?

Answer by: Customer Support on Oct 1, 2025, 8:53 AM

Built to bridge thread standards, it gives you a 1-1/2 inch male BSPP end with a G 1-1/2 - 11 callout on one side and a 1 inch female NPT end with a 1 - 11.5 NPTF callout on the other.
