Male Bspp X Female O-Ring Boss

Ask A Question

Description & Features

This Adaptall straight fitting is a Male Bspp X Female O-Ring Boss configuration, constructed of steel for durability. The Side 1 connection is a 1" Bspp male (G 1 - 11 thread), while Side 2 features a 1" female Orb-Sae (1-5/16 - 12 UN thread).

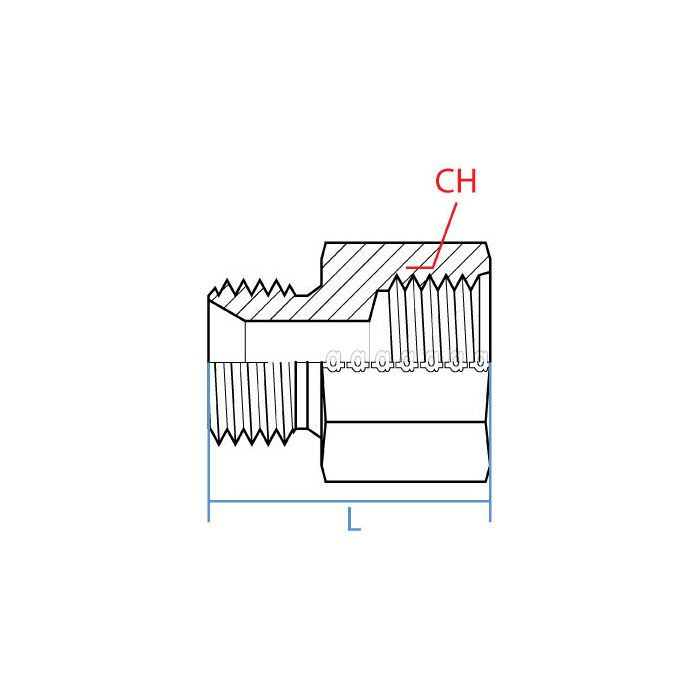

This Male Bspp X Female O-Ring Boss fitting has a Side 1 callout of G 1 - 11 and a Side 2 callout of 1-5/16 - 12 UN. Its Adaptall Ch Width is 41mm, and its Adaptall L Length is 54.5mm.

SKU: 9036-16-16

Supplier Part Number (MPN): 9036-16-16

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female SAE ORB, Male BSP
Connection Type 1
Male BSPP
Connection Type 2
Female SAE ORB
Dimension Standards
BS 5200, ISO 1179, ISO 11926, ISO 8434-6, SAE J1926
Dimensions
52 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9036 Series
Thread Size
1-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Gene M on Jan 16, 2026, 1:03 PM
got a 1 inch BSPP male port on a pump and need to tie into a system that runs SAE O-Ring Boss fittings. this the right adapter to bridge that gap?
Answer by: Customer Support on Jan 17, 2026, 7:27 PM
For that exact crossover, yes. One end of this adapter is a 1 inch male BSPP thread, spec'd at G 1-11, and the other end is a 1 inch female O-Ring Boss at 1-5/16-12 UN. Steel construction, straight configuration, so you're not adding any bends or offsets to the line. Fits right in line between those two thread standards without any additional hardware.
Question by: Jerry H on Nov 28, 2025, 6:02 PM
So this is steel, right? Just wanna make sure it'll hold up okay outside.
Answer by: Customer Support on Nov 29, 2025, 9:36 PM
Constructed from steel, this Adaptall fitting should provide good durability in typical outdoor conditions. However, consider the specific environmental factors and potential exposure to corrosive elements in your area.
