Male Npt X Fixed Female Bspp

Description & Features

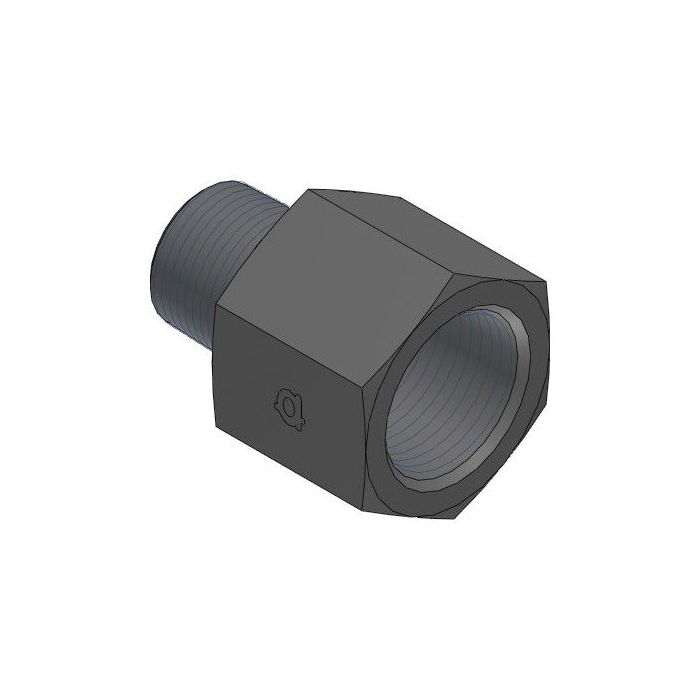

This straight Adaptall fitting features a male 1/8" NPT end and a fixed female 1/8" BSPP end. Constructed of durable steel, it is suitable for various hydraulic applications.

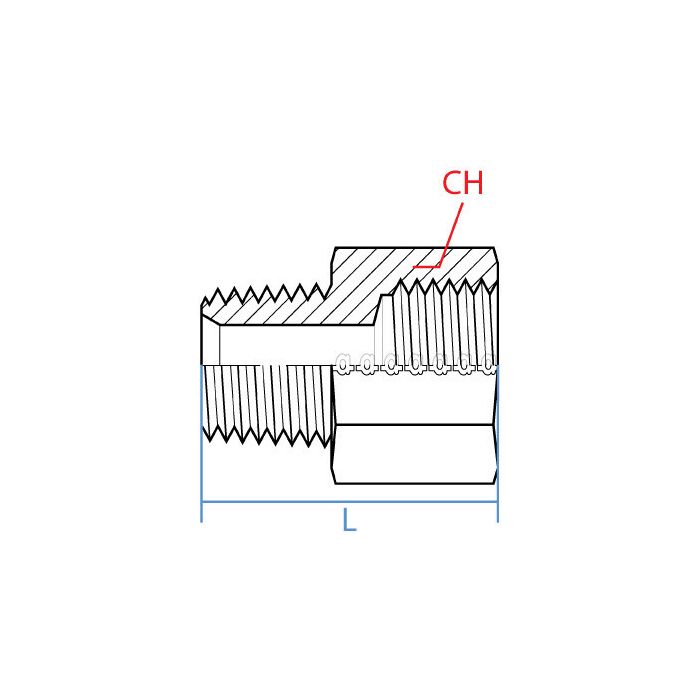

The Adaptall fitting has a 14mm width and an overall length of 27.5mm. This fitting ensures a secure and reliable connection between NPT and BSPP systems.

SKU: 9037-02-02

Supplier Part Number (MPN): 9037-02-02

Specifications

Brand
adapt-all
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
Female BSP, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
27 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9037 Series
Thread Size
1/8-27 x G1/8-28

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Male Npt X Fixed Female Bspp

9037-02-04

1/8 in

1/4 in

1/4-19 x 1/8-27

19 mm

Male Npt X Fixed Female Bspp

9037-04-02

1/4 in

1/8 in

1/8-28 x 1/4-18

14 mm

Male Npt X Fixed Female Bspp

9037-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

19 mm

Male Npt X Fixed Female Bspp

9037-04-06

1/4 in

3/8 in

1/4-19 x 3/8-18

Male Npt X Fixed Female Bspp

9037-06-04

3/8 in

1/4 in

1/4-19 x 3/8-18

22 mm

Male Npt X Fixed Female Bspp

9037-06-06

3/8 in

3/8 in

3/8-19 x 3/8-18

22 mm

Male Npt X Fixed Female Bspp

9037-08-04

1/2 in

1/4 in

1/4-19 x 1/2-14

22 mm

Male Npt X Fixed Female Bspp

9037-08-06

1/2 in

3/8 in

1/2-14 x 3/8-19

Male Npt X Fixed Female Bspp

9037-08-08

1/2 in

1/2 in

1/2-14

28 mm

Male Npt X Fixed Female Bspp

9037-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

35 mm

Male Npt X Fixed Female Bspp

9037-12-12

3/4 in

3/4 in

3/4-14

35 mm

Male Npt X Fixed Female Bspp

9037-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

35 mm

Male Npt X Fixed Female Bspp

9037-16-16

1 in

1 in

1-11 x 1-11-1/2

41 mm

Male Npt X Fixed Female Bspp

9037-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2 x 1-1/4-11

Male Npt X Fixed Female Bspp

9037-24-20

1-1/2 in

1-1/4 in

1-1/2-11 x 1-1/4-11-1/2

Male Npt X Fixed Female Bspp

9037-32-32

2 in

2 in

2-11 x 2-11-1/2

Product Questions & Answers (3)

Question by: Floyd P on Jan 4, 2026, 8:51 AM
Got a piece of equipment running 1/8" NPT ports and need to tie into a BSPP line, this the right adapter for that?
Answer by: Customer Support on Jan 5, 2026, 3:10 PM
That's what this fitting handles. One end is a 1/8" male NPT (1/8-27 NPTF thread) and the other is a fixed 1/8" female BSPP (G 1/8-28). So if you've got an NPT port on your equipment and a BSPP line coming in, this bridges that gap without needing any additional adapters in between.
Question by: Roy B on Jun 18, 2025, 6:54 PM
Will this here fitting work with both NPT and BSPP threads?
Answer by: Customer Support on Jun 20, 2025, 6:04 AM
Yes, this straight Adaptall fitting is designed to connect male NPT to fixed female BSPP threads. It has a male 1/8" NPT end and a fixed female 1/8" BSPP end.
Question by: Diane J on Mar 29, 2026, 8:22 AM
trying to hook up a 1/8 npt line to a 1/8 bspp port, is this the right adapter?
Answer by: Customer Support on Mar 30, 2026, 2:36 PM
For that kind of mix-and-match, it’s a straight steel Adaptall fitting with a male 1/8 - 27 NPTF on one end and a fixed female G 1/8 - 28 BSPP on the other, so it bridges NPT to BSPP in the 1/8 size.
