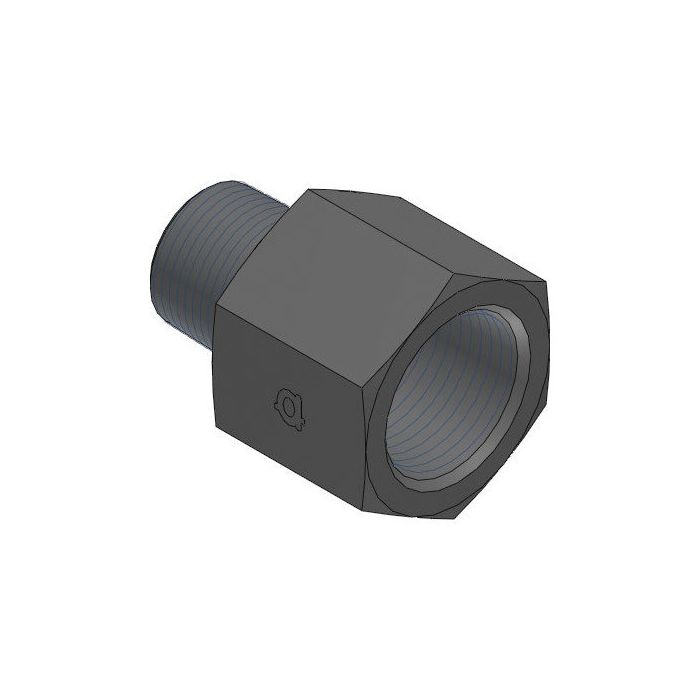

main product photo

Male Npt X Fixed Female Bspp

Ask A Question

Description & Features

Crafted from durable steel, this straight Male NPT x Fixed Female BSPP adapter is designed to ensure reliable and secure connections in hydraulic systems. The adapter features a 1/4" Male NPTF threading on one side and a 1/8" Female BSPP threading on the other, making it versatile for various industrial applications. Measuring 20.9mm in length with a 14mm wrench width, it is engineered by Adaptall for precision and dependable performance.

This adapter is ideal for use in high-pressure environments where a robust and tight seal is critical. Its straightforward design facilitates easy installation and integration into existing systems, enhancing the efficiency and safety of fluid transfer use. Trust in the quality construction of this adapter to maintain effective and leak-free hydraulic connections.

SKU: 9037-04-02

Supplier Part Number (MPN): 9037-04-02

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Female BSP, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
19 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9037 Series
Thread Size
1/8-28 x 1/4-18

Product Questions & Answers (2)

Question by: Keith W on Aug 6, 2025, 8:48 PM
got a port that’s 1/8 G thread on a valve, will this adapter let me screw in a 1/4 nptf line?
Answer by: Customer Support on Aug 8, 2025, 6:41 AM
On the BSPP side you get a fixed female G 1/8 - 28 thread, and the other end is a 1/4 - 18 NPTF male. It is a straight steel adapter meant to join those two thread types in one connection.
Question by: Glen M on Dec 14, 2025, 7:34 PM
Got a line running 1/4 NPT male fittings on one end and need to tie into a 1/8 BSPP female port on a piece of equipment. this adapter work for that swap?
Answer by: Customer Support on Dec 16, 2025, 6:23 AM
That's exactly what this fitting is built for. One side is 1/4-18 NPTF male threading, the other is a G 1/8-28 fixed female BSPP. So if your existing line terminates in a 1/4 NPT male connection and your equipment has a 1/8 BSPP female port, this bridges that gap in a straight configuration without any additional adapters in between.
