Male Npt X Fixed Female Bspp

Description & Features

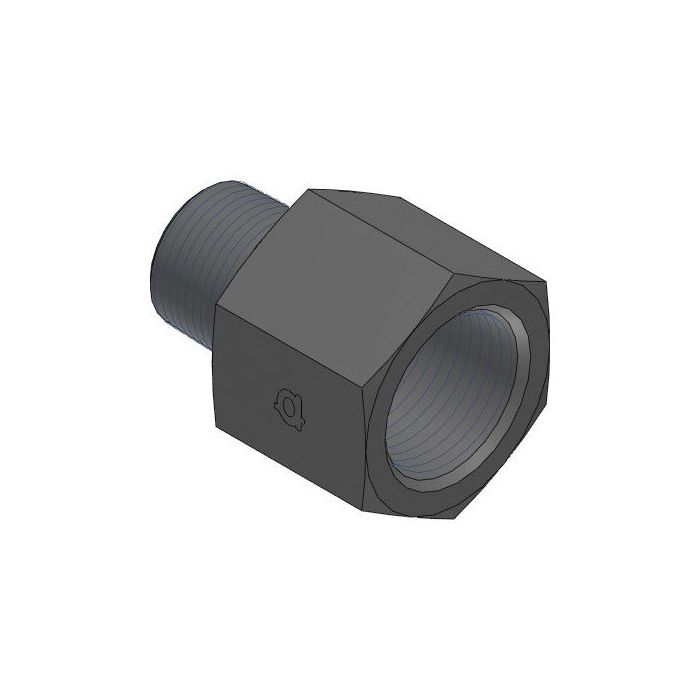

This straight Adaptall fitting adapts between male NPT and fixed female BSPP connections.

This steel fitting features a 3/8" male NPT end with a 3/8" NPTF callout, along with a 3/8" fixed female BSPP end with a G 3/8 - 19 callout. It has a wrench flat of 22mm and an overall length of 36mm.

SKU: 9037-06-06

Supplier Part Number (MPN): 9037-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female BSP, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
36 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9037 Series
Thread Size
3/8-19 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Male Npt X Fixed Female Bspp

9037-02-02

1/8 in

1/8 in

1/8-27 x G1/8-28

14 mm

Male Npt X Fixed Female Bspp

9037-02-04

1/8 in

1/4 in

1/4-19 x 1/8-27

19 mm

Male Npt X Fixed Female Bspp

9037-04-02

1/4 in

1/8 in

1/8-28 x 1/4-18

14 mm

Male Npt X Fixed Female Bspp

9037-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

19 mm

Male Npt X Fixed Female Bspp

9037-04-06

1/4 in

3/8 in

1/4-19 x 3/8-18

Male Npt X Fixed Female Bspp

9037-06-04

3/8 in

1/4 in

1/4-19 x 3/8-18

22 mm

Male Npt X Fixed Female Bspp

9037-08-04

1/2 in

1/4 in

1/4-19 x 1/2-14

22 mm

Male Npt X Fixed Female Bspp

9037-08-06

1/2 in

3/8 in

1/2-14 x 3/8-19

Male Npt X Fixed Female Bspp

9037-08-08

1/2 in

1/2 in

1/2-14

28 mm

Male Npt X Fixed Female Bspp

9037-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

35 mm

Male Npt X Fixed Female Bspp

9037-12-12

3/4 in

3/4 in

3/4-14

35 mm

Male Npt X Fixed Female Bspp

9037-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

35 mm

Male Npt X Fixed Female Bspp

9037-16-16

1 in

1 in

1-11 x 1-11-1/2

41 mm

Male Npt X Fixed Female Bspp

9037-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2 x 1-1/4-11

Male Npt X Fixed Female Bspp

9037-24-20

1-1/2 in

1-1/4 in

1-1/2-11 x 1-1/4-11-1/2

Male Npt X Fixed Female Bspp

9037-32-32

2 in

2 in

2-11 x 2-11-1/2

Product Questions & Answers (1)

Question by: Janet T on Mar 5, 2026, 4:12 PM
got a hose end that’s G 3/8-19 female, will this adapter let me hook it to a 3/8 NPT port?
Answer by: Customer Support on Mar 7, 2026, 8:11 AM
For tying those two thread styles together, it’s set up exactly that way. One side is a 3/8 inch male NPTF thread (3/8-18 NPTF callout) and the other side is a fixed 3/8 inch female BSPP thread (G 3/8-19 callout).
