Male Npt X Fixed Female Bspp

Description & Features

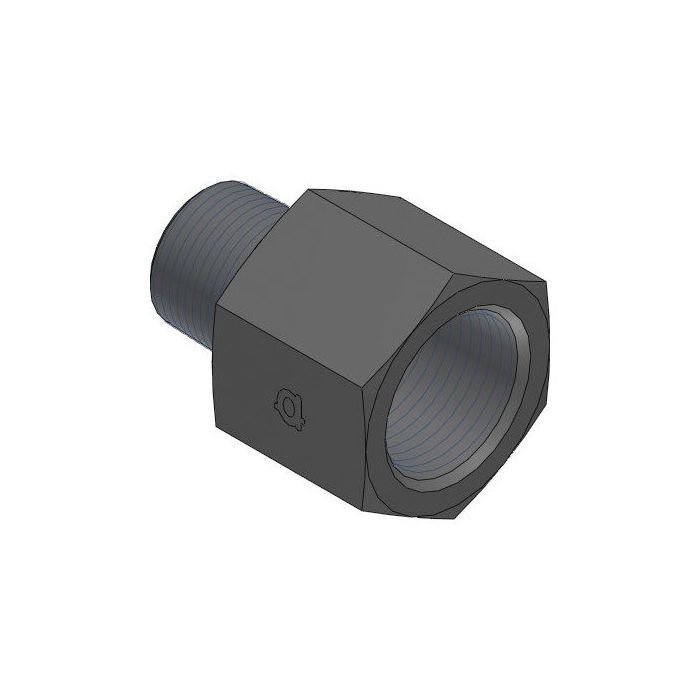

Optimize your hydraulic connections with our robust steel adapter featuring a male NPT x fixed female BSPP configuration. Designed for straight-line applications, this adapter ensures a secure and reliable connection between systems with differing thread standards. The male side accommodates a 1/2 - 14 NPTF thread, while the female side is compatible with G 1/4 - 19 BSPP threads, offering versatile integration options.

The adapter's compact design measures 22mm in width and 25.5mm in length, making it suitable for installations where space is limited. Manufactured by Adaptall, a trusted name in industrial fittings, this product combines durability with precision engineering. Ideal for use in hydraulic systems that demand consistent performance and high-quality materials.

SKU: 9037-08-04

Supplier Part Number (MPN): 9037-08-04

Alternate Part Numbers: FMC102-2017

Specifications

CH Width 22mm	L Length 25.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 14 NPTF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Npt	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number FMC102-2017	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9037-08-04	Product Weight 0.10 lbs

Product Questions & Answers (3)

Question by: Eddie R on Jul 23, 2025, 2:06 PM

Got a system running G 1/4 BSPP on one end and NPT on the other, this adapter gonna bridge that gap straight-line without needing extra fittings?

Answer by: Customer Support on Jul 25, 2025, 7:14 AM

That's what it's built for. One side is 1/2-14 NPTF male, the other is G 1/4-19 BSPP female, so it connects those two thread standards in a single straight fitting. No extra couplings needed. The straight shape keeps the hydraulic connections clean, and at 25.5mm long and 22mm wide, it fits into tighter spots without much trouble. Steel construction means it holds up in typical hydraulic line work.

Question by: Janice H on Jul 31, 2025, 6:29 AM

Will this here adapter work to hook up a 1/2" NPT male fitting to a 1/4" BSPP female port?

Answer by: Customer Support on Aug 2, 2025, 8:52 AM

Yes sir, it will. This adapter is made to connect exactly those sizes and thread types, going from a 1/2" NPT male to a 1/4" BSPP female.

Question by: Gary T on Mar 15, 2026, 7:03 PM

got a hose end that’s 1/2-14 nptf and the port on my valve is g 1/4-19 bspp. is this the right little adapter to marry those up?

Answer by: Customer Support on Mar 17, 2026, 7:35 AM

For tying those two thread styles together, it matches exactly: one side is 1/2 - 14 NPTF male and the other side is G 1/4 - 19 BSPP female, in a straight steel adapter.
