Male Npt X Fixed Female Bspp

Description & Features

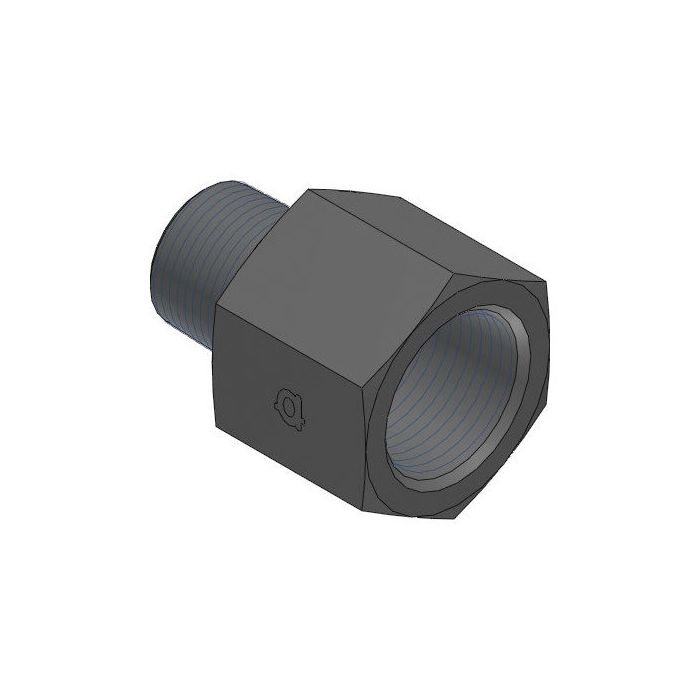

Constructed from steel in a straight configuration, this Adaptall Male NPT X Fixed Female BSPP adapter connects a 3/4" male NPT thread (3/4-14 NPTF) on one end to a 1/2" fixed female BSPP thread (G 1/2-14) on the other. The straight body measures 47.1mm in length with a 35mm wrench width, making it straightforward to install and torque in confined spaces.

This fitting is well suited for hydraulic circuits where NPT-threaded components must interface with BSPP-ported equipment, a common requirement when mixing North American and European standard hardware. The fixed female BSPP end provides a secure, non-swivel connection, and the all-steel construction supports use in demanding industrial hydraulic environments.

SKU: 9037-12-08

Supplier Part Number (MPN): 9037-12-08

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Female BSP, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
47 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
35 mm
Material
Steel
Material Construction
Carbon Steel
Series
9037 Series
Thread Size
3/4-14 x 1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Male Npt X Fixed Female Bspp

9037-02-02

1/8 in

1/8 in

1/8-27 x G1/8-28

14 mm

Male Npt X Fixed Female Bspp

9037-02-04

1/8 in

1/4 in

1/4-19 x 1/8-27

19 mm

Male Npt X Fixed Female Bspp

9037-04-02

1/4 in

1/8 in

1/8-28 x 1/4-18

14 mm

Male Npt X Fixed Female Bspp

9037-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

19 mm

Male Npt X Fixed Female Bspp

9037-04-06

1/4 in

3/8 in

1/4-19 x 3/8-18

Male Npt X Fixed Female Bspp

9037-06-04

3/8 in

1/4 in

1/4-19 x 3/8-18

22 mm

Male Npt X Fixed Female Bspp

9037-06-06

3/8 in

3/8 in

3/8-19 x 3/8-18

22 mm

Male Npt X Fixed Female Bspp

9037-08-04

1/2 in

1/4 in

1/4-19 x 1/2-14

22 mm

Male Npt X Fixed Female Bspp

9037-08-06

1/2 in

3/8 in

1/2-14 x 3/8-19

Male Npt X Fixed Female Bspp

9037-08-08

1/2 in

1/2 in

1/2-14

28 mm

Male Npt X Fixed Female Bspp

9037-12-12

3/4 in

3/4 in

3/4-14

35 mm

Male Npt X Fixed Female Bspp

9037-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

35 mm

Male Npt X Fixed Female Bspp

9037-16-16

1 in

1 in

1-11 x 1-11-1/2

41 mm

Male Npt X Fixed Female Bspp

9037-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2 x 1-1/4-11

Male Npt X Fixed Female Bspp

9037-24-20

1-1/2 in

1-1/4 in

1-1/2-11 x 1-1/4-11-1/2

Male Npt X Fixed Female Bspp

9037-32-32

2 in

2 in

2-11 x 2-11-1/2

Product Questions & Answers (3)

Question by: Roger C on Nov 22, 2025, 12:45 PM
got a pump with 3/4-14 nptf coming off it and the valve block is g 1/2-14. is this the right adapter to tie those together?
Answer by: Customer Support on Nov 24, 2025, 6:56 AM
For that mix of threads, it’s a match. One end is a 3/4 inch male NPTF (3/4-14) and the other end is a 1/2 inch fixed female BSPP (G 1/2-14), so it’s meant to connect an NPT-threaded component to a BSPP-ported piece of equipment.
Question by: Ralph J on Jul 1, 2025, 7:49 AM
Got a piece of European equipment with a G 1/2-14 port and all my supply lines are NPT. this adapter gonna bridge that gap?
Answer by: Customer Support on Jul 3, 2025, 6:10 AM
That's what this one's built for. One end is 3/4-14 NPTF male, the other is a fixed female BSPP at G 1/2-14, so it threads right into that European port and ties your NPT line onto it clean. Pretty common situation when you're running North American hydraulic connections into imported machinery.
Question by: Merle T on Jun 29, 2025, 10:50 AM
What kind of steel is this made from? Just curious if it's gonna hold up to what I need it for.
Answer by: Customer Support on Jun 30, 2025, 4:42 PM
It's constructed entirely from steel, so it's suitable for demanding industrial hydraulic environments.
