Male Npt X Fixed Female Bspp

Ask A Question

Description & Features

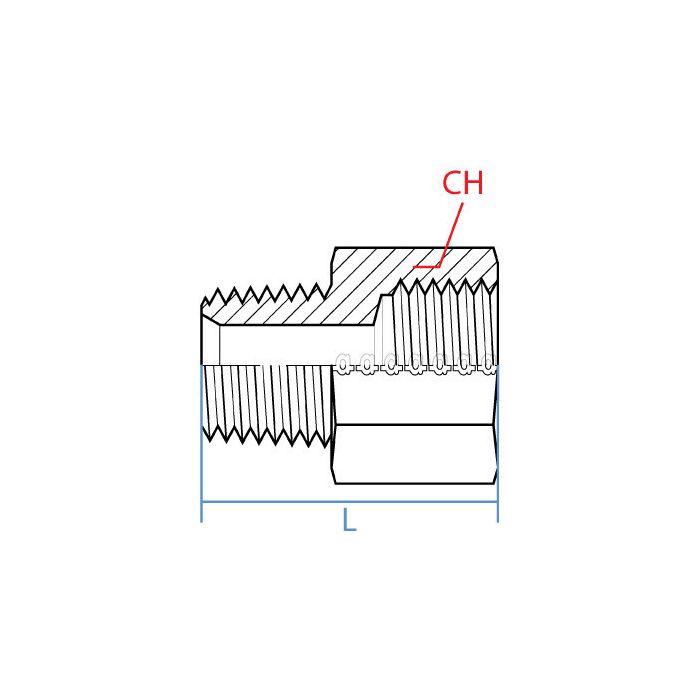

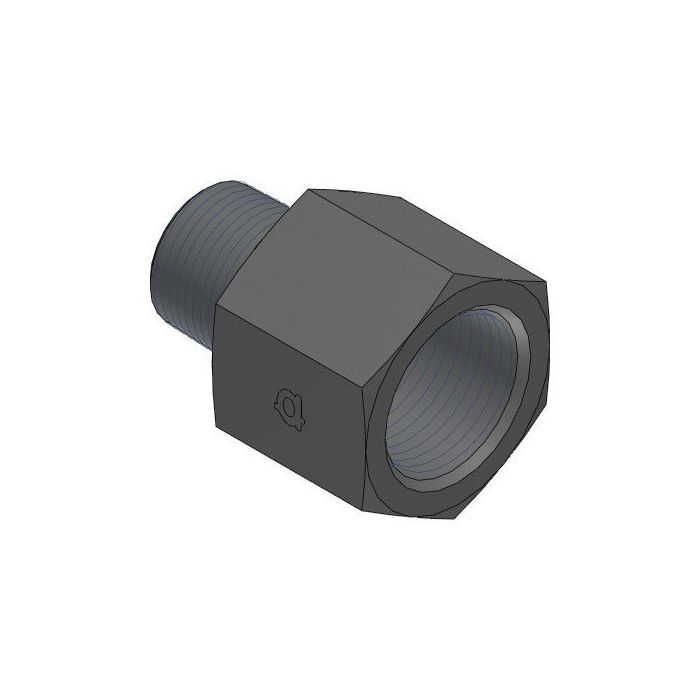

Designed for connecting 1" Male NPT (1-11.5 NPTF) to 3/4" Fixed Female BSPP (G 3/4-14) threads, this straight steel adapter from Adaptall bridges two of the most widely used thread standards in hydraulic and industrial systems. The fixed female BSPP end provides a secure, non-swivel connection suited to installations where thread orientation is set at assembly.

Constructed from steel, the Male Npt X Fixed Female Bspp measures 35.5mm in length with a 35mm across-flats width, offering a compact profile for tight or space-constrained installations. The straight configuration keeps routing clean and direct where in-line thread conversion is required between NPT and BSPP-ported equipment or components.

SKU: 9037-16-12

Supplier Part Number (MPN): 9037-16-12

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Female BSP, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
35.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
35 mm
Material
Steel
Material Construction
Carbon Steel
Series
9037 Series
Thread Size
1-11-1/2 x 3/4-14

Product Questions & Answers (2)

Question by: Hugh B on Jul 7, 2025, 6:17 AM
Got a piece of equipment with a 3/4" BSPP port on it and need to tie into some 1" NPT fittings on the line. This straight adapter gonna work for that hookup?
Answer by: Customer Support on Jul 9, 2025, 6:42 AM
That's exactly what this fitting is built for. One end is 1" Male NPT running 1-11.5 NPTF threads, and the other is a 3/4" Fixed Female BSPP at G 3/4-14. So yeah, it bridges those two thread standards in a straight inline configuration without any routing gymnastics. The fixed female BSPP end does not swivel, so you'll want your port orientation sorted out before you wrench it down.
Question by: Rick P on Jun 10, 2025, 3:16 PM
Reckon this would work to hook up a NPT fitting to somethin' with BSPP threads?
Answer by: Customer Support on Jun 12, 2025, 8:59 AM
Yes, this straight adapter is designed to connect a 1" Male NPT to a 3/4" Fixed Female BSPP thread.
