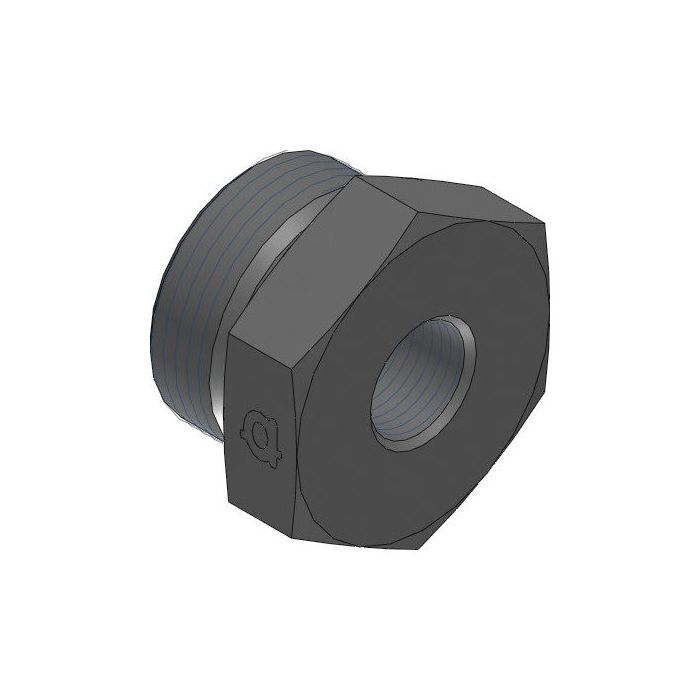

Male Bspp X Fem. Bspp Bushing

Ask A Question

Description & Features

This straight steel bushing adapts between male BSPP and female BSPP threads.

It features a 1/2" male BSPP side with G 1/2 - 14 callout and a 1/4" female BSPP side with G 1/4 - 19 callout.

The product name is Male BSPP X Fem. BSPP Bushing.

SKU: 9038-08-04

Supplier Part Number (MPN): 9038-08-04

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
Female BSP, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female BSPP 60 deg Flare
Dimension Standards
BS 5200
Dimensions
25 mm L
Finish
Zinc-Plated
Fitting Type
Bushing
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9038 Series
Thread Size
1/4-19 x 1/2-14

Product Questions & Answers (2)

Question by: Hank W on Jul 28, 2025, 7:17 AM
Will this here bushing fit a standard 1/2" pipe thread on one end and a 1/4" pipe thread on the other?
Answer by: Customer Support on Jul 29, 2025, 9:13 AM
Actually, it's designed for BSPP threads, not NPT. The sizes are 1/2" and 1/4" BSPP, so be sure that matches what you need.
Question by: Cindy B on Sep 13, 2025, 12:43 PM
Got a 1/2" BSPP port on a manifold block and need to run a 1/4" BSPP line off it. This bushing do the trick for that?
Answer by: Customer Support on Sep 15, 2025, 6:42 AM
That's the situation this part covers. The male side threads into your 1/2" BSPP port using a G 1/2-14 thread, and the female side accepts a 1/4" BSPP male fitting with a G 1/4-19 thread. Steel construction, straight profile, so it drops right in without any angled offset to deal with.
