Extended Mbspp-Fbspp Bushing

Description & Features

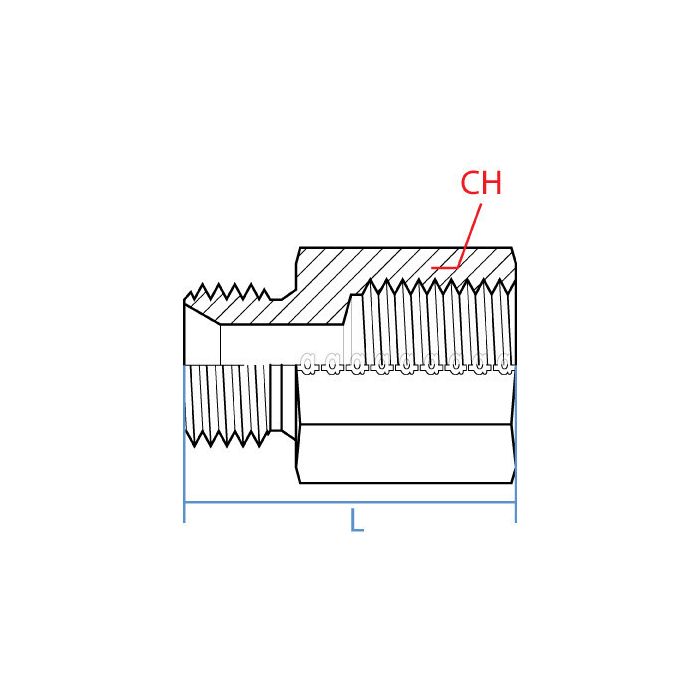

Constructed with durable steel, this Extended Mbspp-Fbspp Bushing offers a reliable solution for connecting different thread sizes in industrial applications. Designed with precision, it features a straight shape and a 19mm width across the flats, ensuring a secure fit. The bushing accommodates a male G 1/8 - 28 BSPP thread on one side and a female G 1/4 - 19 BSPP thread on the other, providing versatility for various hydraulic systems.

With a length of 31.9mm, this bushing is engineered for efficiency in tight spaces where compact yet robust connections are necessary. The Adaptall brand ensures high-quality performance, making it a trusted component in the hydraulic industry. This bushing is ideal for systems requiring precise thread compatibility and robust material integrity.

SKU: 9039-02-04

Supplier Part Number (MPN): 9039-02-04

Specifications

Brand adapt-all	Connection Size 1 1/8 in	Connection Size 2 1/4 in	Connection Type Female BSP, Male BSP	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Female BSPP 60 deg Flare	Dimension Standards BS 5200	Dimensions 29 mm L	Finish Zinc-Plated	Fitting Type Bushing	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 9039 Series	Thread Size 1/4-19 x 1/8-28

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9039-02-02	1/8 in	1/8 in	1/8-28	14 mm
9039-04-02	1/4 in	1/8 in	1/4-19 x 1/8-28	19 mm
9039-04-04	1/4 in	1/4 in	1/4-19	19 mm
9039-04-06	1/4 in	3/8 in	1/4-19 x 3/8-19	22 mm
9039-04-12	1/4 in	3/4 in	3/4-14 x 1/4-19	32 mm
9039-06-04	3/8 in	1/4 in	1/4-19 x 3/8-19	22 mm
9039-06-06	3/8 in	3/8 in	3/8-19	22 mm
9039-06-08	3/8 in	1/2 in	1/2-14 x 3/8-19	27 mm
9039-06-12	3/8 in	3/4 in	3/4-14 x 3/8-19	32 mm
9039-08-06	1/2 in	3/8 in	1/2-14 x 3/8-19	27 mm
9039-08-08	1/2 in	1/2 in	1/2-14	27 mm
9039-08-12	1/2 in	3/4 in	3/4-14 x 1/2-14	32 mm
9039-08-20	1/2 in	1-1/4 in	1/2-14 x 1-1/4-11
9039-10-08	5/8 in	1/2 in	1/2-14 x 5/8-14
9039-12-08	3/4 in	1/2 in	3/4-14 x 1/2-14	32 mm
9039-12-10	3/4 in	5/8 in	5/8-14 x 3/4-14	32 mm
9039-12-12	3/4 in	3/4 in	3/4-14	32 mm
9039-12-16	3/4 in	1 in	1-11 x 3/4-14	41 mm
9039-16-12	1 in	3/4 in	1-11 x 3/4-14	41 mm
9039-16-16	1 in	1 in	1-11	41 mm
9039-16-20	1 in	1-1/4 in	1-11 x 1-1/4-11
9039-20-20	1-1/4 in	1-1/4 in	1-1/4-11
9039-24-24	1-1/2 in	1-1/2 in	1-1/2-11	55 mm
