Extended Mbspp-Fbspp Bushing

Description & Features

Constructed from steel in a straight configuration, this Extended Mbspp-Fbspp Bushing transitions a male G 3/8-19 BSPP thread on one end to a female G 1/2-14 BSPP thread on the other, making it well suited for hydraulic circuit assemblies where a step-up in port size is required between male and female BSPP connections.

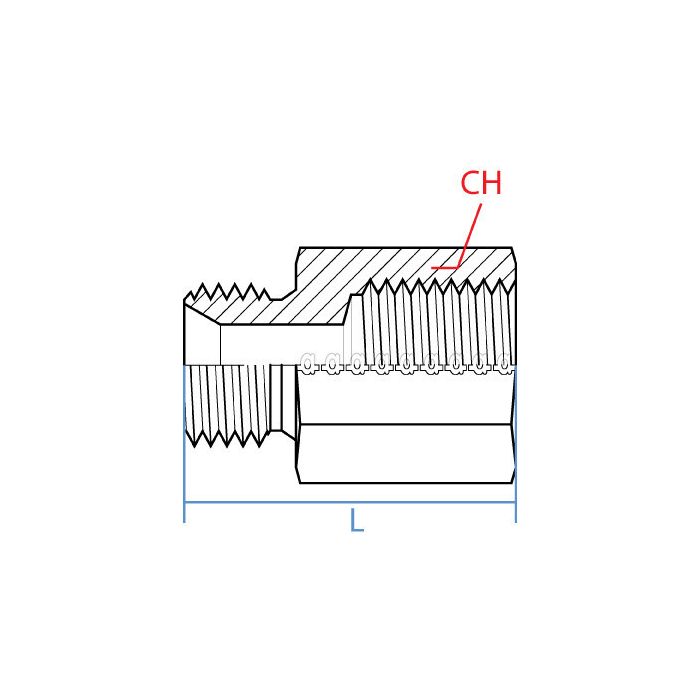

Manufactured by Adaptall, the bushing measures 41.1mm in overall length with a 27mm across-flats width, providing a practical extended-body profile that aids installation in confined or recessed port locations. The all-steel construction supports the mechanical demands typical of hydraulic line and manifold connections.

SKU: 9039-06-08

Supplier Part Number (MPN): 9039-06-08

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Female BSP, Male BSP	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Female BSPP 60 deg Flare	Dimension Standards BS 5200	Dimensions 38 mm L	Finish Zinc-Plated	Fitting Type Bushing	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9039 Series	Thread Size 1/2-14 x 3/8-19

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9039-02-02	1/8 in	1/8 in	1/8-28	14 mm
9039-02-04	1/8 in	1/4 in	1/4-19 x 1/8-28	19 mm
9039-04-02	1/4 in	1/8 in	1/4-19 x 1/8-28	19 mm
9039-04-04	1/4 in	1/4 in	1/4-19	19 mm
9039-04-06	1/4 in	3/8 in	1/4-19 x 3/8-19	22 mm
9039-04-12	1/4 in	3/4 in	3/4-14 x 1/4-19	32 mm
9039-06-04	3/8 in	1/4 in	1/4-19 x 3/8-19	22 mm
9039-06-06	3/8 in	3/8 in	3/8-19	22 mm
9039-06-12	3/8 in	3/4 in	3/4-14 x 3/8-19	32 mm
9039-08-06	1/2 in	3/8 in	1/2-14 x 3/8-19	27 mm
9039-08-08	1/2 in	1/2 in	1/2-14	27 mm
9039-08-12	1/2 in	3/4 in	3/4-14 x 1/2-14	32 mm
9039-08-20	1/2 in	1-1/4 in	1/2-14 x 1-1/4-11
9039-10-08	5/8 in	1/2 in	1/2-14 x 5/8-14
9039-12-08	3/4 in	1/2 in	3/4-14 x 1/2-14	32 mm
9039-12-10	3/4 in	5/8 in	5/8-14 x 3/4-14	32 mm
9039-12-12	3/4 in	3/4 in	3/4-14	32 mm
9039-12-16	3/4 in	1 in	1-11 x 3/4-14	41 mm
9039-16-12	1 in	3/4 in	1-11 x 3/4-14	41 mm
9039-16-16	1 in	1 in	1-11	41 mm
9039-16-20	1 in	1-1/4 in	1-11 x 1-1/4-11
9039-20-20	1-1/4 in	1-1/4 in	1-1/4-11
9039-24-24	1-1/2 in	1-1/2 in	1-1/2-11	55 mm

Product Questions & Answers (1)

Question by: Vince F on Apr 8, 2025, 3:19 PM

What size ports is this bushing going between exactly? Got a 3/8 male BSPP fitting I need to run into a 1/2 female BSPP port and just want to make sure I got the right part.

Answer by: Customer Support on Apr 9, 2025, 8:32 PM

That's exactly what this one does. The male end is G 3/8-19 BSPP and the female end accepts G 1/2-14 BSPP, so you're stepping up from the smaller 3/8 male connection into the larger 1/2 female port. Steel construction throughout, so it'll hold up to the mechanical loads you'd see in a standard hydraulic line or manifold setup.
