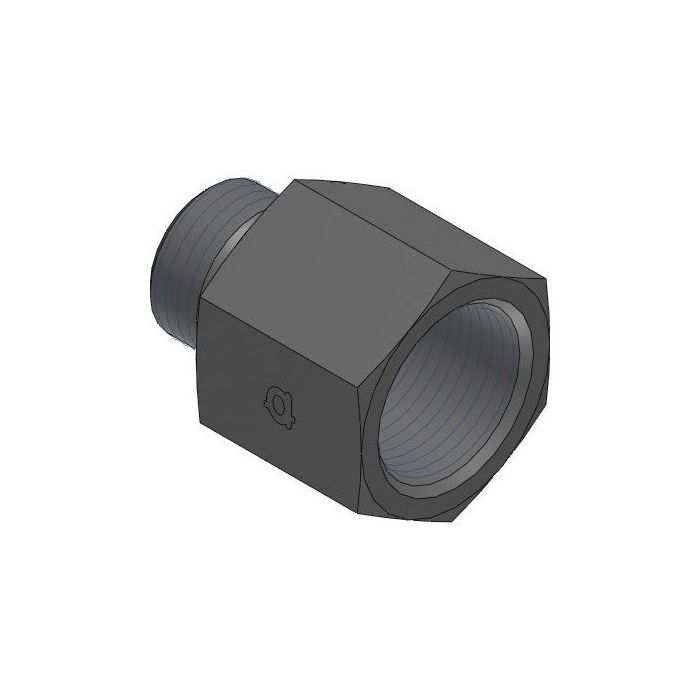

main product photo

Extended Mbspp-Fbspp Bushing

Ask A Question

Description & Features

This straight Adaptall bushing features male BSPP (British Standard Parallel Pipe) threads on one side and female BSPP threads on the other. This Extended Mbspp-Fbspp Bushing is constructed of durable steel.

The male BSPP side has a G 1/2 - 14 callout and 1/2" size. The female BSPP side has a G 3/8 - 19 callout and 3/8" size. The Adaptall Ch Width is 27mm, and the Adaptall L Length is 39.3mm.

SKU: 9039-08-06

Supplier Part Number (MPN): 9039-08-06

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female BSP, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female BSPP 60 deg Flare
Dimension Standards
BS 5200
Dimensions
33 mm L
Finish
Zinc-Plated
Fitting Type
Bushing
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9039 Series
Thread Size
1/2-14 x 3/8-19

Product Questions & Answers (1)

Question by: Janice M on Jun 20, 2025, 6:17 PM
what's the difference in thread size between the two ends on this bushing?
Answer by: Customer Support on Jun 22, 2025, 7:03 AM
One end is a 1/2 inch male BSPP thread with a G 1/2 - 14 callout, and the other is a 3/8 inch female BSPP thread with a G 3/8 - 19 callout. So you're stepping down half a size from one end to the other, which makes it useful when you need to connect a 1/2 inch male fitting into a 3/8 inch female port without swapping out larger components.
