Extended Mbspp-Fbspp Bushing

Description & Features

The Extended Mbspp-Fbspp Bushing is expertly crafted by Adaptall America for industrial applications demanding reliable performance.

Featuring a straight shape and constructed from steel, this bushing is designed for durability. Both sides of the bushing have a G 1/2 - 14 Bspp connection, ensuring seamless compatibility.

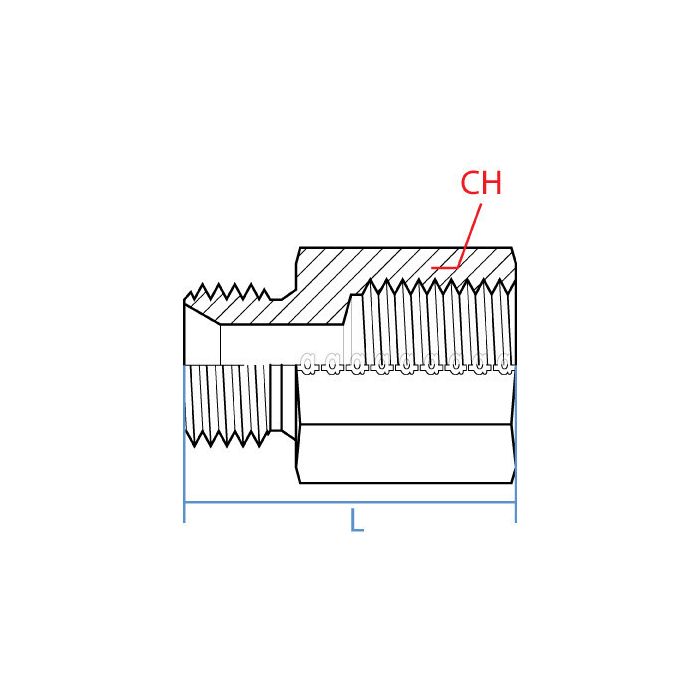

With dimensions including a CH width of 27mm and an L length of 42.3mm, it meets specific technical requirements. This non-adjustable, non-calibrated component does not include a diode.

Precision engineering guarantees a secure fit, making it integral for ensuring continuous function in various industrial settings.

Supplier Part Number: 9039-08-08

Specifications

CH Width 27mm	L Length 42.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02205762, Alternate Part Number MINO-03671X84708	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9039-08-08	Product Weight 0.36 lbs

Product Questions & Answers (3)

Question by: Tony Y on Apr 4, 2026, 1:10 PM

got a steel bushing with G 1/2 - 14 on both ends, is this one male on one side and female on the other?

Answer by: Customer Support on Apr 6, 2026, 12:30 PM

On this extended bushing, Side 1 is G 1/2 - 14 BSPP male and Side 2 is G 1/2 - 14 BSPP female, both in 1/2 inch size.

Question by: Harold P on Apr 28, 2025, 6:57 PM

If both sides are the same size, what would I use this for? Seems kinda redundant.

Answer by: Customer Support on Apr 30, 2025, 2:19 PM

This extended bushing allows you to connect two BSPP fittings of the same size (1/2") while adding extra length, which can be useful in tight spaces or for specific alignment needs in your hydraulic system.

Question by: Warren H on Mar 13, 2026, 2:57 PM

What size connections does this bushing have on both ends, and are they the same thread type all the way through?

Answer by: Customer Support on Mar 15, 2026, 6:54 AM

Both ends run G 1/2 - 14 BSPP. One side is male, the other is female, and the thread spec is identical across both connections. So you're working with a straight-through BSPP configuration at 1/2 inch on each end, which makes it useful for extending or joining fittings in a BSPP line without changing thread type or size.
