Extended Mbspp-Fbspp Bushing

Description & Features

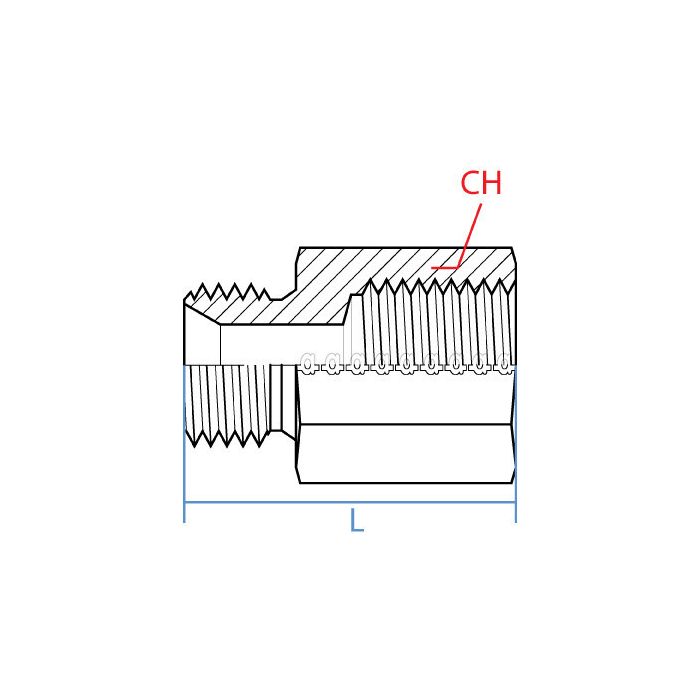

Designed for transitioning between male and female BSPP connections of different sizes, this steel straight bushing connects a G 1/2 - 14 male port to a G 3/4 - 14 female port. The extended body profile, 46.3mm in length with a 32mm wrench width, provides additional reach where standard-length bushings fall short in recessed or offset port configurations.

Manufactured by Adaptall, the Extended Mbspp-Fbspp Bushing is constructed from steel, making it well suited for hydraulic systems operating under demanding industrial conditions. Its straight configuration keeps the connection axis aligned, supporting clean, direct assembly in tight installations.

SKU: 9039-08-12

Supplier Part Number (MPN): 9039-08-12

Specifications

CH Width 32mm	L Length 46.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9039-08-12	Product Weight 0.30 lbs

Product Questions & Answers (1)

Question by: Ray M on Aug 22, 2025, 1:04 PM

Got a port on my hydraulic manifold that's recessed pretty deep, standard bushings never reach far enough to get a solid connection. Would something like this work for that kind of situation?

Answer by: Customer Support on Aug 24, 2025, 7:54 AM

That's exactly the kind of job this bushing was built for. At 46.3mm in length, it gives you more reach than a standard-length bushing, which makes it a solid pick when you're dealing with recessed or offset port configurations where shorter fittings just don't cut it. It's a straight bushing, so your connection stays on-axis, and the 32mm wrench width gives you something to torque against properly. Steel construction holds up well under demanding industrial hydraulic conditions too.
