Extended Mbspp-Fbspp Bushing

Description & Features

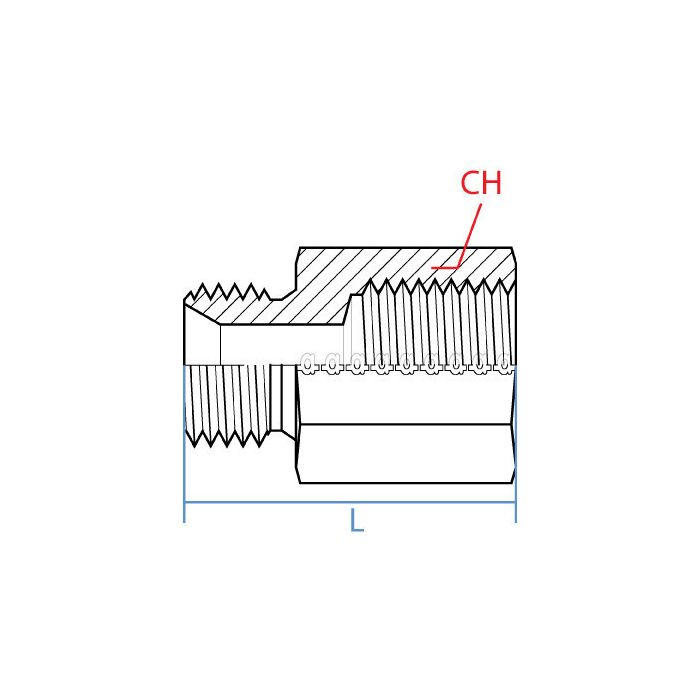

This straight steel extended MBSPP to FBSPP bushing, manufactured by Adaptall, adapts from a 1" male BSPP (G 1 - 11) to a 3/4" female BSPP (G 3/4 - 14) connection.

This Adaptall fitting features a 41mm wrench flat and an overall length of 53.2mm.

SKU: 9039-16-12

Supplier Part Number (MPN): 9039-16-12

Specifications

Brand adapt-all	Connection Size 1 1 in	Connection Size 2 3/4 in	Connection Type Female BSP, Male BSP	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Female BSPP 60 deg Flare	Dimension Standards BS 5200	Dimensions 45 mm L	Finish Zinc-Plated	Fitting Type Bushing	Hex Size 41 mm	Material Steel	Material Construction Carbon Steel	Series 9039 Series	Thread Size 1-11 x 3/4-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9039-02-02	1/8 in	1/8 in	1/8-28	14 mm
9039-02-04	1/8 in	1/4 in	1/4-19 x 1/8-28	19 mm
9039-04-02	1/4 in	1/8 in	1/4-19 x 1/8-28	19 mm
9039-04-04	1/4 in	1/4 in	1/4-19	19 mm
9039-04-06	1/4 in	3/8 in	1/4-19 x 3/8-19	22 mm
9039-04-12	1/4 in	3/4 in	3/4-14 x 1/4-19	32 mm
9039-06-04	3/8 in	1/4 in	1/4-19 x 3/8-19	22 mm
9039-06-06	3/8 in	3/8 in	3/8-19	22 mm
9039-06-08	3/8 in	1/2 in	1/2-14 x 3/8-19	27 mm
9039-06-12	3/8 in	3/4 in	3/4-14 x 3/8-19	32 mm
9039-08-06	1/2 in	3/8 in	1/2-14 x 3/8-19	27 mm
9039-08-08	1/2 in	1/2 in	1/2-14	27 mm
9039-08-12	1/2 in	3/4 in	3/4-14 x 1/2-14	32 mm
9039-08-20	1/2 in	1-1/4 in	1/2-14 x 1-1/4-11
9039-10-08	5/8 in	1/2 in	1/2-14 x 5/8-14
9039-12-08	3/4 in	1/2 in	3/4-14 x 1/2-14	32 mm
9039-12-10	3/4 in	5/8 in	5/8-14 x 3/4-14	32 mm
9039-12-12	3/4 in	3/4 in	3/4-14	32 mm
9039-12-16	3/4 in	1 in	1-11 x 3/4-14	41 mm
9039-16-16	1 in	1 in	1-11	41 mm
9039-16-20	1 in	1-1/4 in	1-11 x 1-1/4-11
9039-20-20	1-1/4 in	1-1/4 in	1-1/4-11
9039-24-24	1-1/2 in	1-1/2 in	1-1/2-11	55 mm

Product Questions & Answers (2)

Question by: Roy E on Apr 9, 2025, 6:31 AM

What size connections does this thing have?

Answer by: Customer Support on Apr 10, 2025, 12:41 PM

It adapts a 1" male BSPP connection to a 3/4" female BSPP connection.

Question by: Glen P on Dec 6, 2025, 1:19 PM

got a 1 inch BSPP male on one side and need to step down to 3/4 BSPP female, is this the right bushing?

Answer by: Customer Support on Dec 8, 2025, 11:50 AM

For that exact thread change, it matches. Side 1 is a 1 inch male BSPP with a G 1 - 11 callout, and side 2 is a 3/4 inch female BSPP with a G 3/4 - 14 callout.
