Extended Mbspp-Fbspp Bushing

Description & Features

Designed for seamless integration in hydraulic systems, the Extended Mbspp-Fbspp Bushing connects male and female BSPP threads of 1-1/4" size. This component is crafted from high-quality steel, ensuring durability and reliable performance in demanding industrial environments. With a straight shape and a width of 50mm, it provides an efficient solution for connecting components where an extended reach is required.

Manufactured by Adaptall, this bushing features a length of 54.7mm, making it suitable for applications requiring precise alignment and connection. Its robust construction supports consistent functionality, offering a dependable option for maintaining system integrity. The product's versatility makes it ideal for various industrial applications where British Standard Pipe Parallel connections are standard.

SKU: 9039-20-20

Supplier Part Number (MPN): 9039-20-20

Specifications

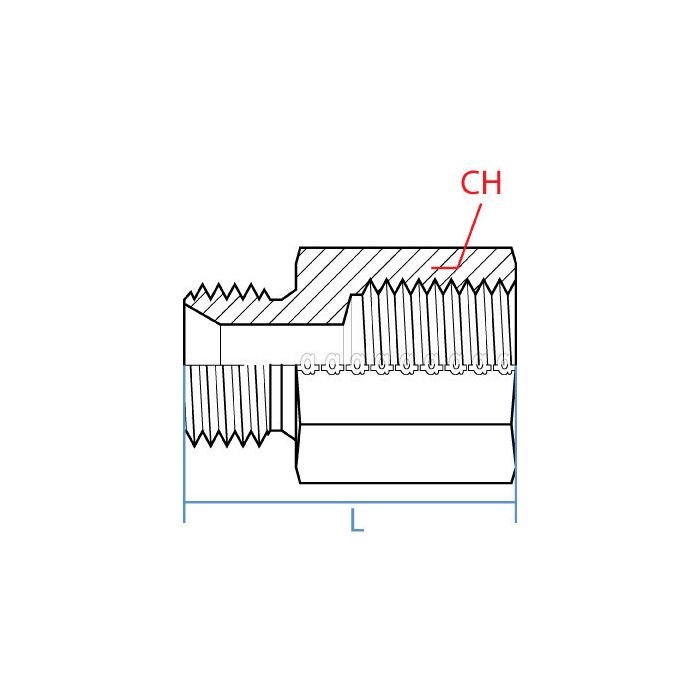

CH Width 50mm	L Length 54.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9039-20-20	Product Weight 0.99 lbs

Product Questions & Answers (3)

Question by: Floyd W on Jun 16, 2025, 4:25 PM

What exactly is this bushing doing in a hydraulic line, and why would I need the extended length instead of a standard one?

Answer by: Customer Support on Jun 18, 2025, 6:48 AM

When you need to bridge a gap between two BSPP-threaded components that a shorter fitting just can't reach, this is what closes that gap. The 54.7mm length gives you that extra reach while keeping both sides at the same 1-1/4 inch G thread spec. Both ends run the same size and thread type, so its really just about giving you more working length along the connection point without changing how the threads engage. The 50mm width keeps it solid and manageable in tight quarters too.

Question by: Sherry S on Mar 26, 2026, 1:57 PM

got a setup with G 1-1/4 - 11 on both sides. Is this bushing male on one end and female on the other, or am i readin that wrong

Answer by: Customer Support on Mar 27, 2026, 4:11 PM

For a quick fit check, it is male BSPP on Side 1 and female BSPP on Side 2, both in G 1-1/4 - 11 (1-1/4 inch) BSPP threads.

Question by: Sherry H on Nov 28, 2025, 3:06 PM

What's the width of this bushing, like how much space do I need?

Answer by: Customer Support on Nov 29, 2025, 5:20 PM

The bushing is 50mm wide, so factor that into your space requirements.
