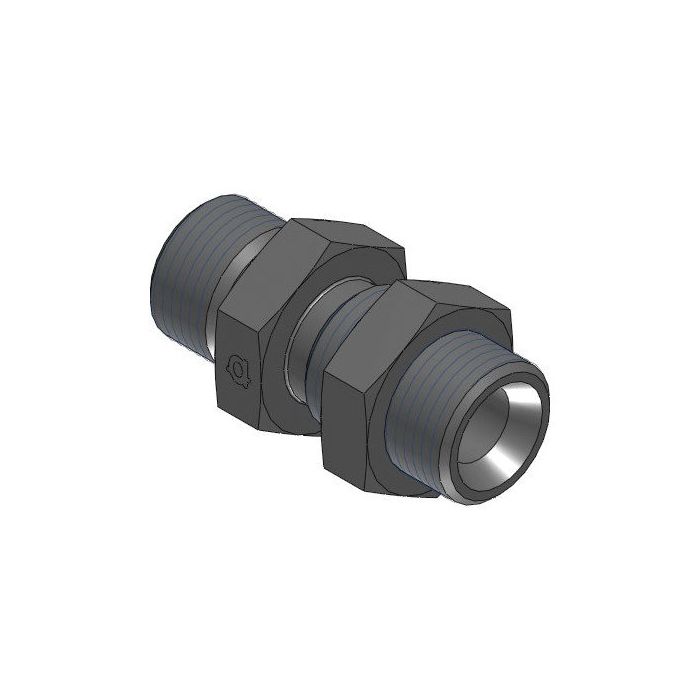

main product photo

1.67"Long Mbspp-Mbspp Bulkhead

Ask A Question

Description & Features

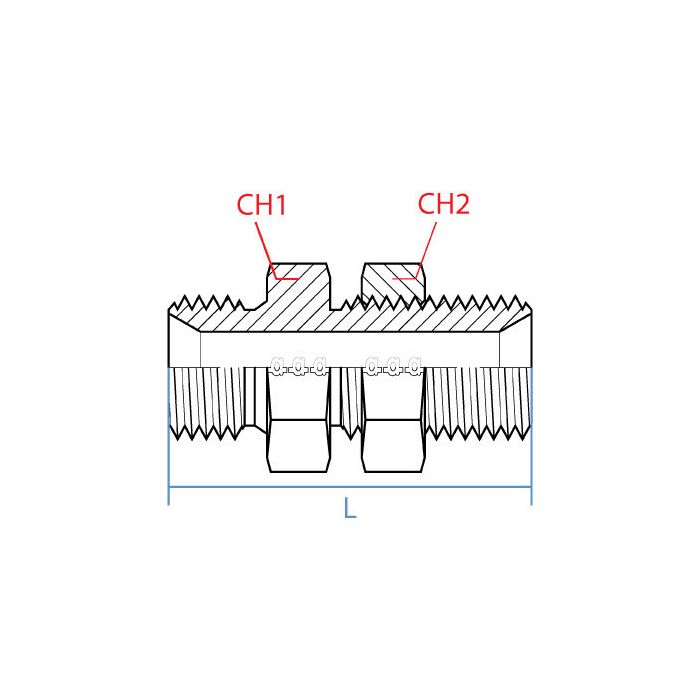

A straight, male-to-male bulkhead adapter with BSPP (British Standard Parallel Pipe) threads on both ends, this fitting is designed for panel or bulkhead-mounted installations where a fluid line must pass through a partition in an industrial hydraulic circuit. Both sides carry G 1/8 - 28 thread profiles at 1/8" size, making it a same-size, same-thread pass-through connection. The overall length measures 43mm, with a 14mm wrench flat on each end to allow secure installation and tightening from either side of the bulkhead.

Constructed from steel, the 1.67"Long Mbspp-Mbspp Bulkhead is an Adaptall product built to consistent dimensional standards. Its straight configuration and uniform thread type on both sides suit compact installations where alignment and minimal envelope size are priorities.

SKU: 9040-02-02

Supplier Part Number (MPN): 9040-02-02

Specifications

Brand
adapt-all
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Dimensions
43 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9040 Series
Thread Size
1/8-28

Product Questions & Answers (2)

Question by: Eddie W on Aug 22, 2025, 9:51 AM
Will this fitting hold up okay in an oily environment, or should I look for something with more corrosion resistance?
Answer by: Customer Support on Aug 23, 2025, 5:24 PM
This bulkhead fitting is constructed from steel, which provides good strength and durability for typical hydraulic applications. Keep in mind that steel is susceptible to corrosion over time, so regular cleaning and maintenance are recommended to prolong its service life in oily or humid environments.
Question by: Ronnie R on Dec 15, 2025, 3:09 PM
trying to pass a small hydraulic line through a panel, is this the kind of bulkhead fitting for that
Answer by: Customer Support on Dec 16, 2025, 4:17 PM
For a pass-through connection in a panel or partition, this straight bulkhead adapter is built for that job. It mounts through the bulkhead and gives you male BSPP threads on both sides so you can hook a line up on each side of the wall.
